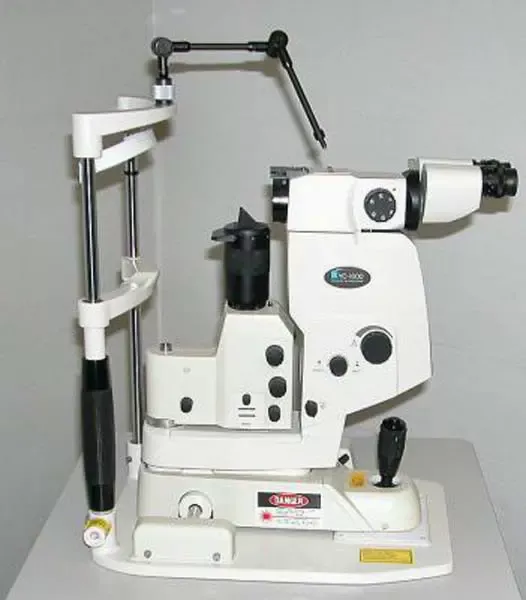

Nidek YC 1600 YAG Laser

The Nidek YC 1600 Yag laser is one of the most reliable, efficient and easy to use yag laser of its time. Its easy single trigger operation allows simple firing and easy aiming. Our engineer fully refurbishes every laser prior to sale. Rest assure this yag will be firing at great power upon arrival.

Fine Adjustment
The focus shift mechanism makes it possible to shift the Nd:
YAG laser beam focal point posterior or anterior to
the aiming beam focal point by up to 500 mm, in 25 mm increments.

Precise and easy aiming
The YC-1600 utilizes dual aiming beams that can be rotated at 360 degrees,
permitting the targeting of even oblique tissues with greater ease and
precision.
633nm Aiming Beam. Compared to a conventional laser’s 650nm
wavelength aiming beam, the YC-1600’s 633nm wavelength aiming beam
offers superior visual sensitivity, which in turn enhances the speed and
ease of operation.
The 633nm beam is also safer to human eyes since it achieves the
same intensity of 650nm with half the power output.

Fast Operation
In addition to the single pulse, a burst mode is also selectable.
Continuous firing at 2 or 3 pulses can be accomplished with
a single activation of the trigger.

Stability
Test firing is automatically carried out when the system is started and
when the energy is changed. The energy value appears on the display,
permitting the surgeon to check the power level at any time.

Safety Features
Several safety features are incorporated to protect both surgeon and
patient. These include a filter to reduce the reflected Nd:YAG beam to
1/100,000 or less, an emission indicator to show when the laser is ready to
be fired, a diagnostic function to monitor condition of the system,
and more.
