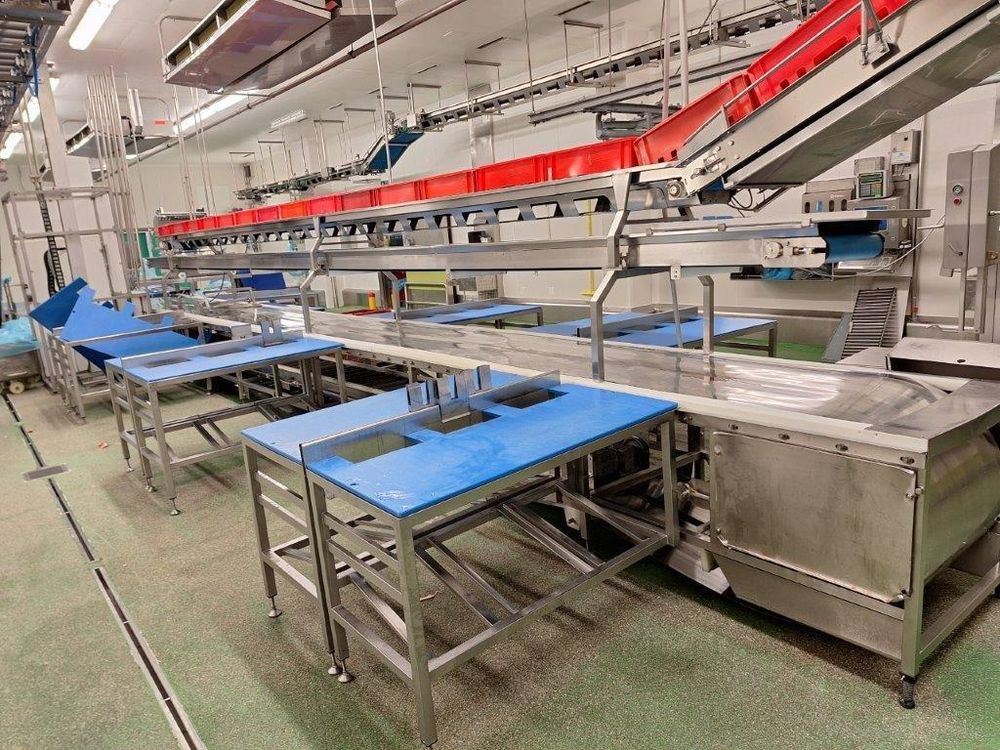

Nieros 18 m steel cutting belt Cutting line

with tables, pipe and box conveyor system


Nieros meat cutting line (approx. 18 m), tubular conveyor system with elevators and scales (+150 hooks with mobile support frame), 2 crate conveyors, and nine cutting tables for hanging on the cutting line

Raw material conveyor system:
- New tubular conveyor system with a second elevator and mobile intake for trucks and elevators, as well as a scale. The total length of the new tubular conveyor system is approximately 50 m.
- Older tubular conveyor system has a length of approximately 153 m.

Steel cutting line:
- 1 E2 crate conveyor below the steel belt
- 1 E2 crate conveyor above the steel cutting line with a meat conveyor
- Total width of the steel cutting line: approx. 980 mm
- Total width of the steel cutting line: 800 mm
- Total length of the steel cutting line: approx. 18 m
- Crate conveyor above the steel cutting line: approx. 13 m
- Crate conveyor below the Cutting steel belt approx. 12 m
Characteristic values
Number of butcher tables
9 pcs.
Dimensions of tables (LxWxH)
1340 x 660 x 885 mm
Table tops
white, are replaced
Butcher hooks
150 with mobile support frame
Crate conveyor belt under the ceiling
Length approx. 44 m, bolted
Crate conveyor belt/roller conveyor
Length approx. 40 m, bolted
Crate conveyor belt/inclined belt conveyor
1 pc.
Length of new tubular conveyor system
approx. 50 m
Length of older tubular conveyor system
approx. 153 m
Dimensions of steel butcher belt (LxW)
1800 x 98 cm
Working width of steel butcher belt
800 mm
