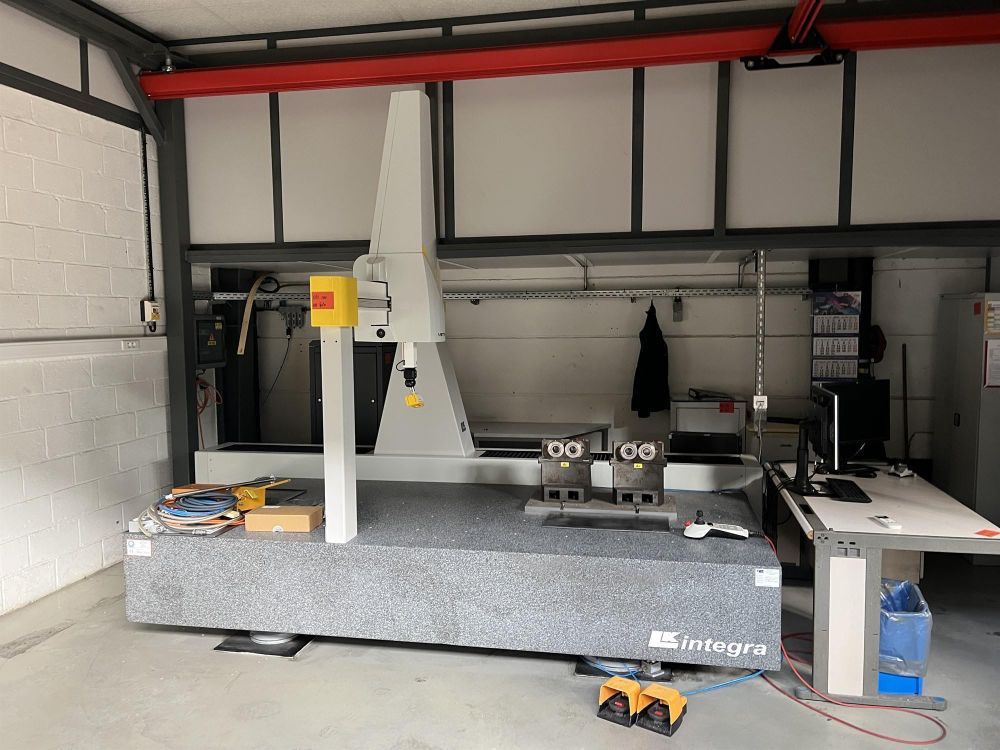

Nikon METRIS MMC LKV 25.10.8

Travel X: 2500 mm
Travel Y: 1000 mm
Travel Z: 800 mm
Machine length: 3259 mm
Machine width: 2011 mm
Machine thickness: 3510 mm
Model: LK V-SL
High-accuracy coordinate measuring machine (HA – High Accuracy)
Renishaw control system
Probe head controller: PHC 10-2
Interface selector: 191-2
Probe interface: PI 200
Laser control system: LC60DX
Laser scanner accuracy: 9 µm
Renishaw PH10M motorized indexing measuring head
A-axis rotation: ±180°
B-axis rotation: 0–115°
Indexation step: 7.5°
Total positions: 720
Maximum stylus weight: 300 g
Maximum stylus length: 300 mm
Position repeatability: ±0.4 µm
SCHUNK quick-change clamping system
Model: VERO-S NSE plus 90
Module diameter: 90 mm
Operating pressure: 6 bar
Clamping force: 25,000 N (25 kN)
Material: hardened stainless steel
Operation: pneumatic actuation with mechanical self-locking
Positioning accuracy: ≤ 0.005 mm
