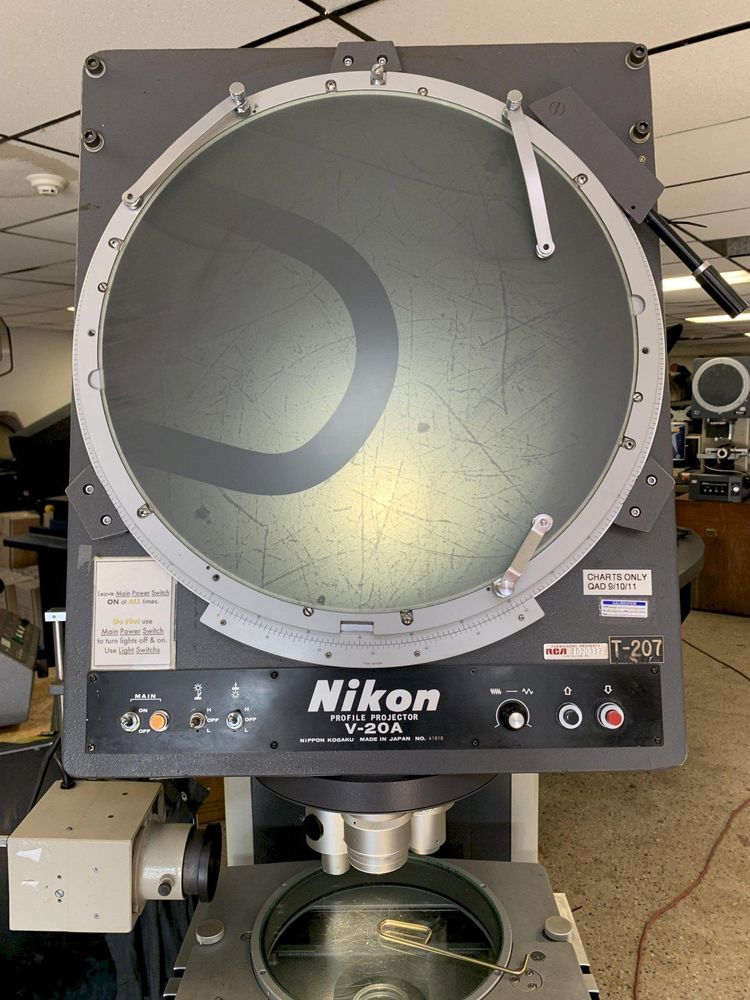

Nikon V-20A

Comparators, Optical

Screen Diameter - 19.68"
Measuring Table Size - 18.11" L-R x 10.23" F-B
Glass Insert Size - 11.41" L-R x 7.08" F-B
Stage Longitudinal Travel - 6.89"
Stage Cross Travel - 2.95"
Stage Vertical Travel for Focusing - 8.46"
Angular Measuring Capacity - 360 degrees
Maximum Specimen Weight on Table - 44 lbs
Electrics - 1/60/115v
Floor Space - 40" L-R x 56" F-B x 80" H
Weight, Approx - 700 lbs
2-Axis Digital Readout (install pending)
Tungsten-Halogen Projection - 24v, 150w
Tungsten-Halogen Surface Illumination - 24v, 150w
Three Position Lens Turret with 10x, 20x, 50x Lenses
Variable Speed Power Elevation (Focusing)
Light Visor with Curtains
Rotating Table Type 2
Availability pending - approx 4 weeks after receipt of order
