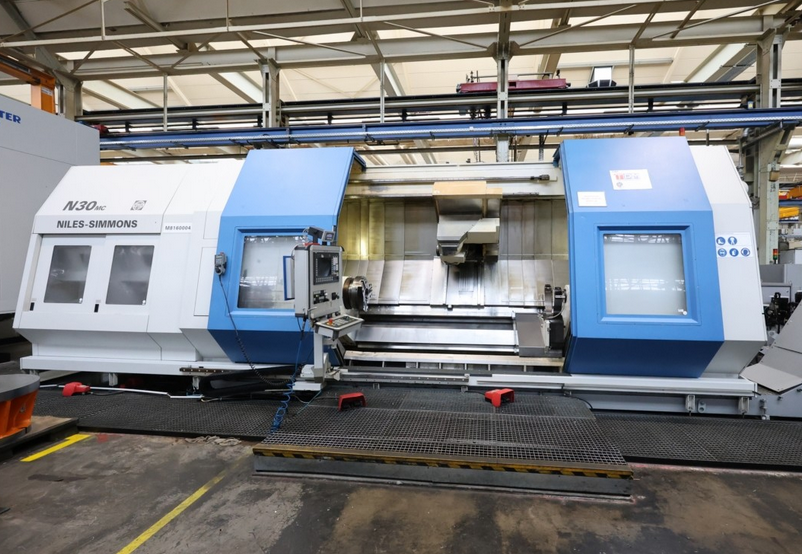

Niles, Simmons Control Siemens Sinumerik 840 D 30 rpm N30 - 3MC-2500 3 Axis

X-axis travel 720 mm
Z-axis travel 4072 mm
X-axis rapid traverse 18 m/min
Z-axis rapid traverse 30 m/min
X-axis feed rate 0.1 - 18000 mm/min
Z-axis feed rate 0.1 - 30000 mm/min
C-axis speed range 0.1 - 30 rpm
C-axis max. torque 930 Nm
C-axis positioning accuracy 0.005°
Control Siemens Sinumerik 840 D
Turning diameter 470 mm
Turning length 2500 mm
Work height max. 1300 mm
Swing over bed 780 mm
Swing over bed slide 750 mm
Quill diameter 160 mm
Taper bore MK 5
Spindle bore 123 mm
Spindle head DIN 55026: A 11
Spindle front bearing diameter 200 mm
Spindle drive power 37/45 kW
Spindle speed range 10 - 2500 rpm
Spindle torque max. 2083 Nm
Tool capacity 48
Tool weight max. 15 kg
Tool length max. 500 mm
Forkardt power chuck with hard and soft jaws
Hydraulic steady rest
Tailstock with center point
Chip conveyor
Coolant device
5 HSK 100 A holders
Technical documentation
Total power requirement 123 kVA
Machine weight 27 t
Machine dimensions 8.4 × 4.0 × 3.3 m
