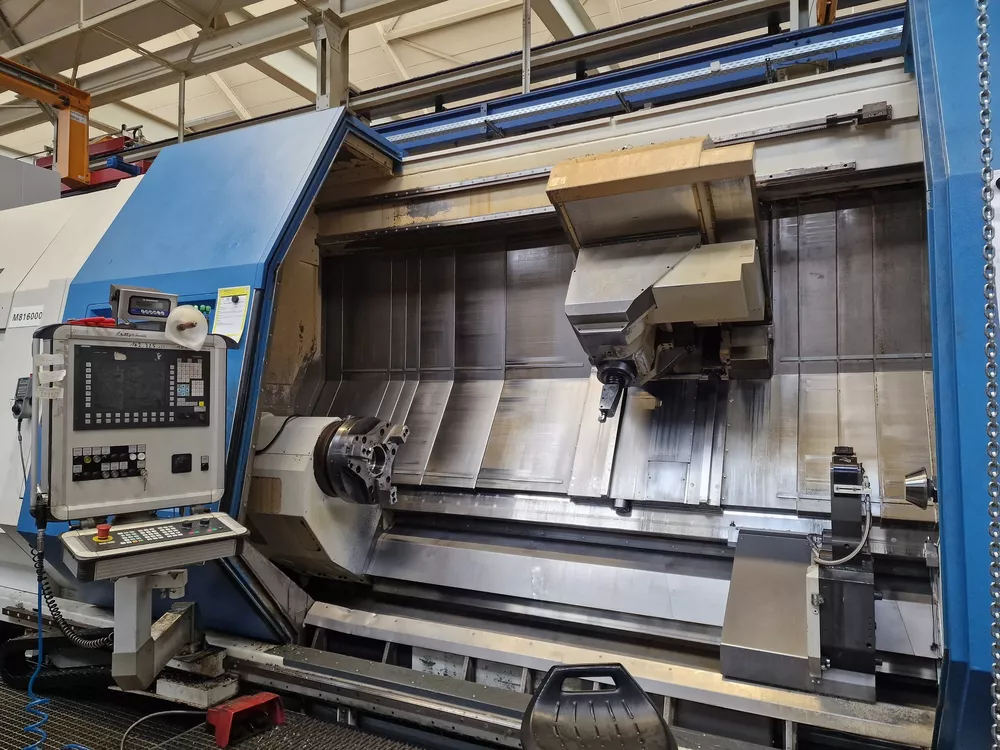

Niles, Simmons SIEMENS 840D 4000 RPM N30 M-2500 4 Axis

X-axis travel: 720 mm
Z-axis travel: 3072 / 4072 mm
Y-axis travel: -165 to +300 mm
Y-axis rapid traverse: 12 m/min
Y-axis feed range: 0.1 – 12,000 mm/min
B-axis swivel range: -105° to +95°
B-axis rapid traverse: 180°/s
B-axis resolution: 0.001°
B-axis positioning: -105° to +95°
B-axis holding torque (clamped): 4000 Nm
B-axis holding torque (NC axis): 800 Nm
C-axis speed range: 0.1 – 30 RPM
C-axis measuring resolution: 0.001°
C-axis max torque (60% ED): 930 Nm
C-axis holding torque: 3000 Nm
C-axis positioning accuracy: 0.005°
X-axis measuring system: linear, absolute
Z-axis measuring system: linear, absolute

Milling spindle clamping torque: 1000 Nm
Turning length: 2500 mm
Swing over bed: 780 mm
Swing over bed slide: 750 mm
Working height: 1300 mm
Spindle head: DIN 55026 A11
Spindle bore: 123 mm
Spindle front bearing diameter: 200 mm
Oriented spindle stop: 0–359°

Tailstock clamp: hydraulic
Tailstock positioning: by bed slide
Quill actuation: hydraulic
Quill diameter: 150 mm
Quill stroke: 160 mm
Quill inner taper: MK 5
Quill axial force: 4–25 kN
Quill/tailstock travel speed: 8 / 12 m/min
Quill tip height adjustment: ±0.15 mm

Tool spindle front bearing diameter: 110 mm
Tool interface: HSK100A
Main cutting force (clamped spindle): 15 kN
Main cutting force (rotating spindle): 6 kN
Spindle power (100% / 60% / 40% ED): 29 / 33 / 37.5 kW
Spindle speed: 0 – 4000 RPM
Spindle nominal speed: 862 RPM

Max spindle torque (100% / 60% / 40% ED): 305 / 347 / 395 Nm
Tool magazine: 48 tools
Chip conveyor: Included
Recooling system: Included
Control: SIEMENS 840D
