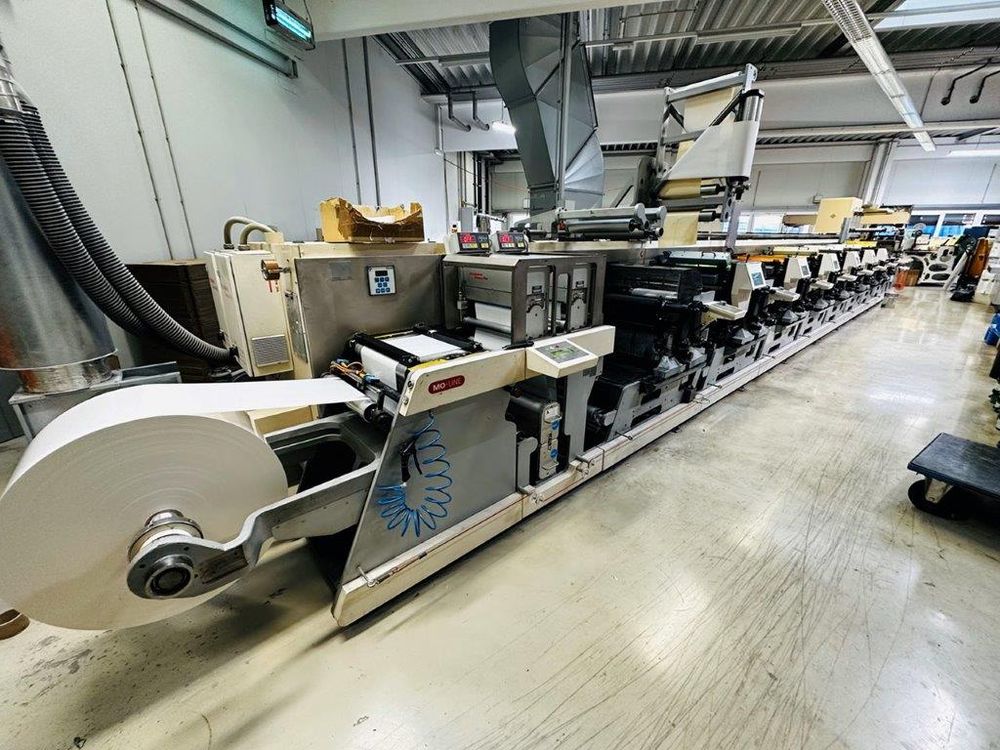

Nilpeter MO4

Printing width 420 mm
Number of printing units 9 total (1 x Flexo + 7 Offset + 1 Flexo)
Printing process Combination – Offset + Flexo Cylinder gears (tooth counts) 200 teeth / 192 teeth / 184 teeth
Offset units 7 complete units including: – 7 blanket cylinders – 7 plate cylinders Flexo unit 1 built-in flexo printing station with cliché cylinder

Additional configuration:
1 lamination station integrated after the final unit Gear sets included – 7 blanket cylinders (200 teeth) – 7 plate cylinders (200 teeth)
– 1 cliché cylinder (200 teeth) – 7 blanket cylinders (192 teeth) – 5 plate cylinders (192 teeth) – 1 cliché cylinder (192 teeth)
– 7 blanket cylinders (184 teeth) – 7 plate cylinders (184 teeth) – 1 cliché cylinder (184 teeth)
Magnetic cylinders 1 × 184 teeth 1 × 192 teeth 1 × 200 teeth Web width up to 420 mm
Substrate range self-adhesive paper, film, foil
Additional features UV curing, lamination, sheeting & die-cutting capability
Condition Good, complete with cylinders and accessories
TOOLING & ACCESSORIES Full set of offset cylinders and gears (184T / 192T / 200T)
Magnetic cylinders (184T, 192T, 200T)

Flexo cliché cylinder and lamination station
Complete technical documentation
Additional spare parts and tools available upon request
GENERAL CONDITION
The press is in very good mechanical and optical condition, complete with all main printing units, gears, magnetic cylinders, and accessories.
