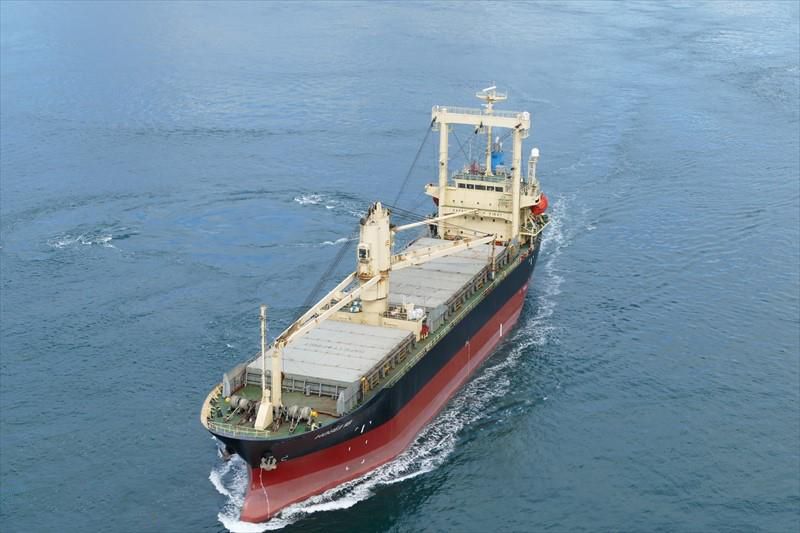

Nishii TWEEN DECK GENERAL CARGO VESSEL (CARGO HOLDS ARE BOX SHAPE) ABT 11,400 MTDW

TYPE:GENERAL CARGO SHIP
PANAMANIAN FLAG
NK CLASS OCEANGOING
NEXT SS/DD:JAN 2025 / NOV 2022

LBD: 110.67/102.16 x 19.20 x 13.50m
DWT:11400 ON DRAFT 9.214M
GRT 7,442 T
NRT 3,957 T
2 HOLD / 2 HATCH
HOLD CAPACITY GRAIN 15,760 M3
BALE 14,681 M3
CARGO HATCH :
NO.1 CARGO HOLD UPPER DECK 20.30M X 14.00M SINGLE PULL TYPE HATCH COVER
NO.1 CARGO HOLD 2ND DECK 20.30M X 14.00/9.30M PONTOON TYPE HATCH COVER
NO.2 CARGO HOLD UPPER DECK 33.60M X 14.00M SINGLE PULL TYPE HATCH COVER
NO.2 CARGO HOLD 2ND DECK 22.60M X 14.00M PONTOON TYPE HATCH COVER
STRENGTH : TANK TOP 147.15 KN/M2
2ND DECK 32.9KN/M2
UPPER DECK 14.5KN/M2
ON HATCH (FREEBOARD DECK) 32.9KN/M2
ON HATCH (UPPER DECK) 12.8KN/M2
DOUBLE DECK CRANE 30T X 2 (CAN LIFT UPTO 60T) DERRICK 30T X 1

M/E - DESIGN B&W BUILDER - MAKITA 6L35MC (MARK VI) MCR 3,900KW (5,302PS) X 210RPM
NOR 3,315KW (4,490PS) X 199RPM (85PCT MCR)
TRIAL MAX SPEED AT TIME OF NB :15.40 KNOTS SERVICE SPEED :
ON BALLAST CONDITION - ABT 13 KNOTS ON FOC ABT 12.5 MT/DAY
ON LOADED CONDITION - ABT 12.5 KNOTS
ON FOC ABT 13.0 MT/DAY
(ABOVE DETAILS ARE GUIDANCE PURPOSE ONLY AND NOT GUARANTEED)
