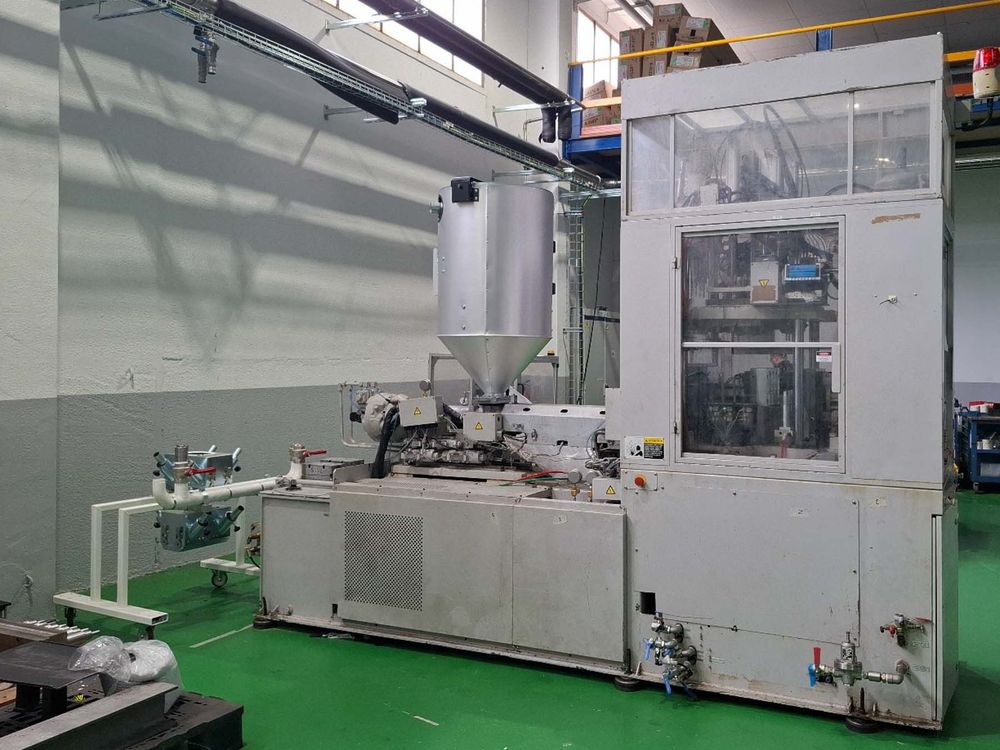

Nissei ASB ASB-50 MB
Ref :
2756295-6-GO
Condition :
Used
Manufacturer :
Nissei ASB
Model :
ASB-50 MB
Year(s) :
2003
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Blow Clamping Force 78 kN
Body Diameter max. 115 - 35 mm
Capacity max. 2,5 - 0,03 l
Cavity Number 1-6
Dimensions (long x wide x high) 3.768 x 1.170 x 2.910 mm
Height max. 300 - 150 mm
Injection Clamping force 60 kN
Injection volume 153*2 cm³
Neck Diameter max. 60 - 15 mm
Oil tank capacity 250 l
Operating hours
Screw diameter 44 mm
Support Ring Diameter max. 63 - 17 mm
Thread Diameter max. 63 - 17 mm
Weight 3.000 kg
Weight max. 129 - 22 g
Width Parting Line max. 145 - 35 mm
