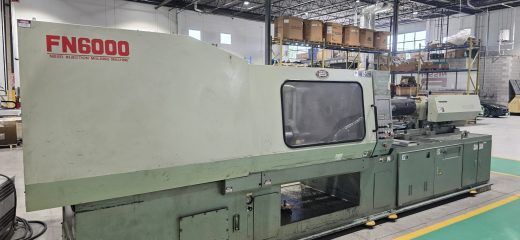

Nissei FN6000 300 T

Used FN6000 300ton Nissei (2004) equipped with 9300T Controller
Hours 84,995

CLAMP UNIT
Clamping force: 308 U.S. Tons
Clamping stroke 830 mm (32.68”)
Minimum mold thickness 320 mm (12.60”)
Maximum daylight opening 1150 mm (45.28”)
Clearance between tie bars (HxV) 660 mm x 660 mm (25.99” x 5.99”)
Die plate dimensions (HxV) 955 mm x 955 mm (37.60” x 37.60”)
Min. mold dimensions (HxV) 465 mm x 465 mm (18.31” x 18.31”)
Ejector stroke 130 mm (5.15”)

INJECTION UNIT
Screw diameter: 71 mm (2.80 -C)
Shot size: 29.83 oz. G.P.P.S.
Injection Pressure: 17,775 PSI
Screw rotation speed: 0~200 RPM

ELECTRICAL UNIT
Pump motor 50HP
Primary voltage/phase/cycle 575/3/60
Heater voltage 230/3/60

Control circuit 24volt DC
NOTE: Heater voltage requires separate 230volt supply

GENERAL
Hydraulic oil quantity requirements: 810 litres
