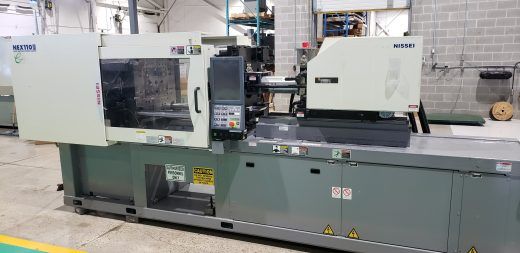

Nissei NEX110-1E All Electric Machine 108 T

INJECTION UNIT
Screw diameter mm 16
INJECTION CAPACITY cm³ 10
PLASTICIZING RATE ※1 kg/h 8
INJECTION PRESSURE (Note 1) MPa 255
INJECTION RATE cm³/s 101
INJECTION SPEED mm/s 500
SCREW STROKE mm 50
Screw rotation speeds rpm 0~400
INJECTION FORCE kN 51
Nozzle Touch Force kN 7
HOPPER CAPACITY (OPT) L 15

CLAMP UNIT
CLAMP FORCE KN 1080.
Clamping stroke mm 350
Mold thickness
Minimum to Maximum (MIN. ~MAX.) mm 220~510
Maximum opening distance DAYLIGHT OPENING mm 860
Tie bar spacing (HxV) CLEARANCE BET. RODS mm 460 × 460
Die plate dimensions (HxV) mm 647 × 647
MOLD SIZE MIN. mm 325 × 325
EJECTOR STROKE mm 85
EJECTOR FORCE kN 24

GENERAL
HEATER BAND CAPACITY kW
2.63 ($14)
3.05 (16)
3.26 (619)

CLAMP-ELEC. MOTOR kW 7.5
EJECTOR-ELEC, MOTOR kW 2.0
INJECTION-ELEC. MOTOR kW 7.5
SCREW-ELEC. MOTOR kW 2.0
