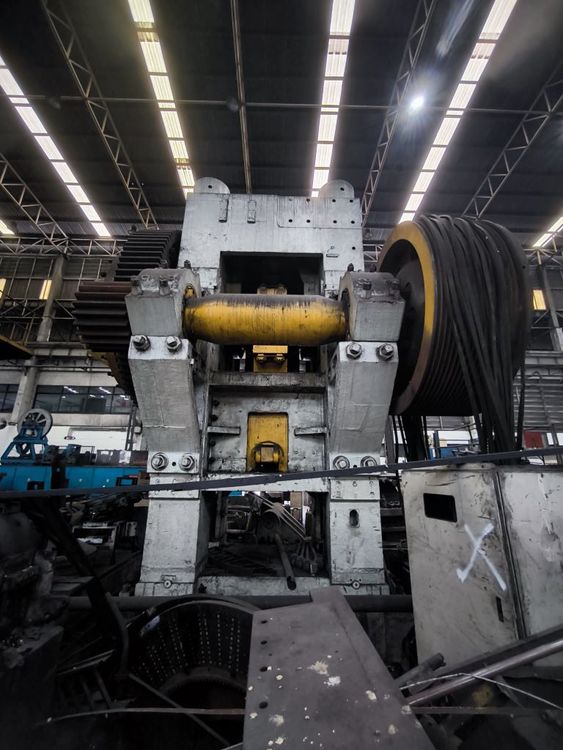

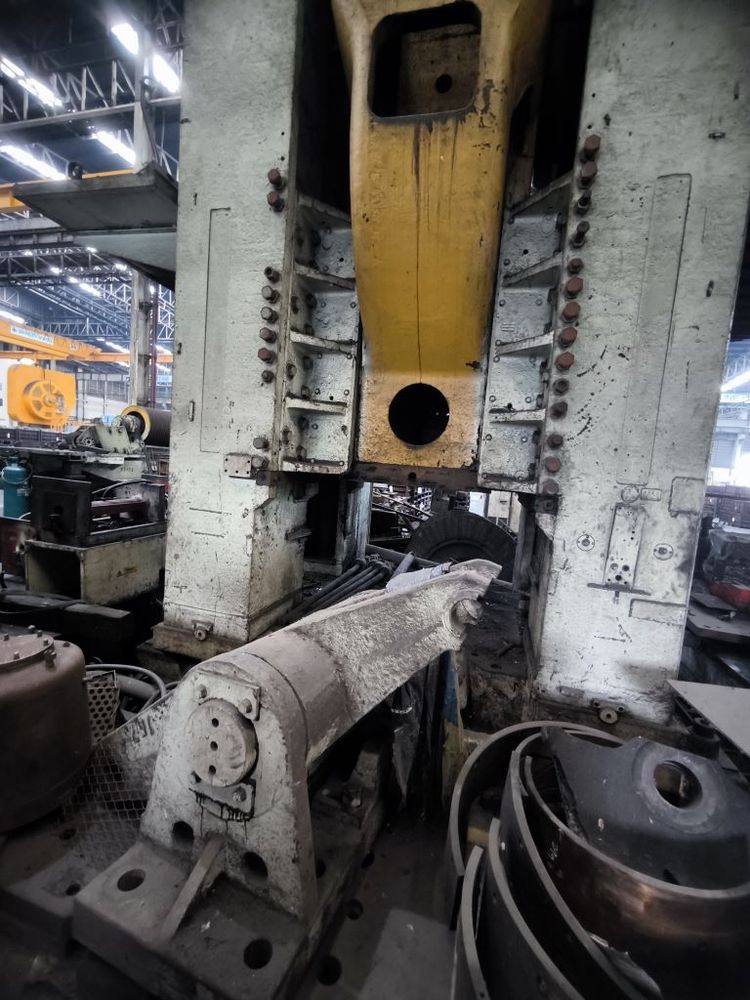

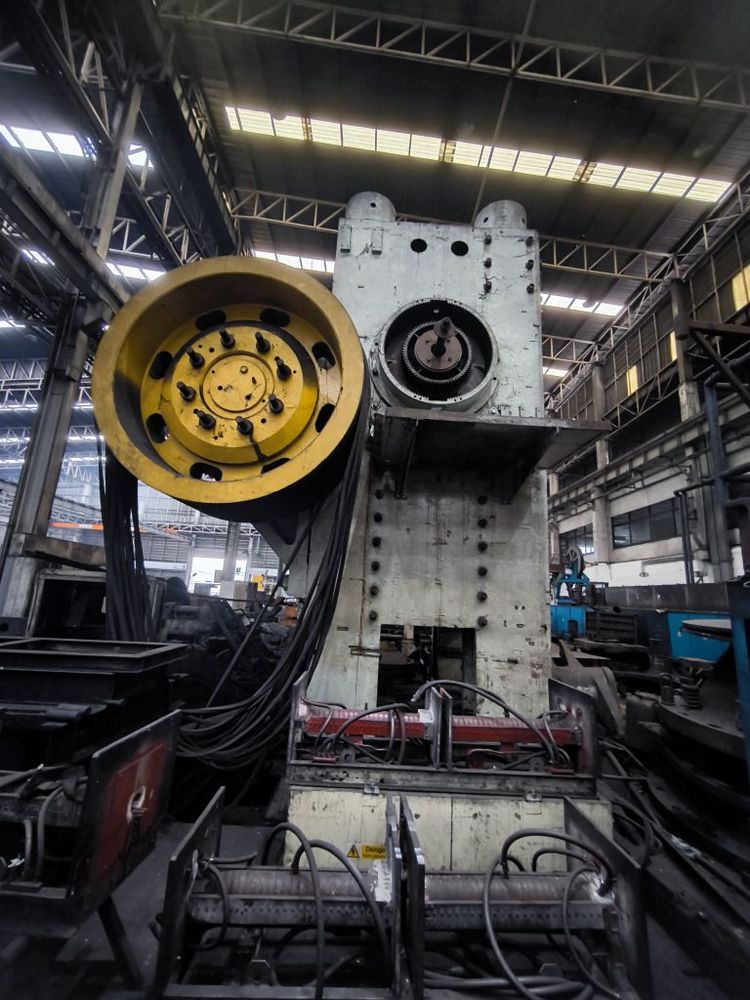

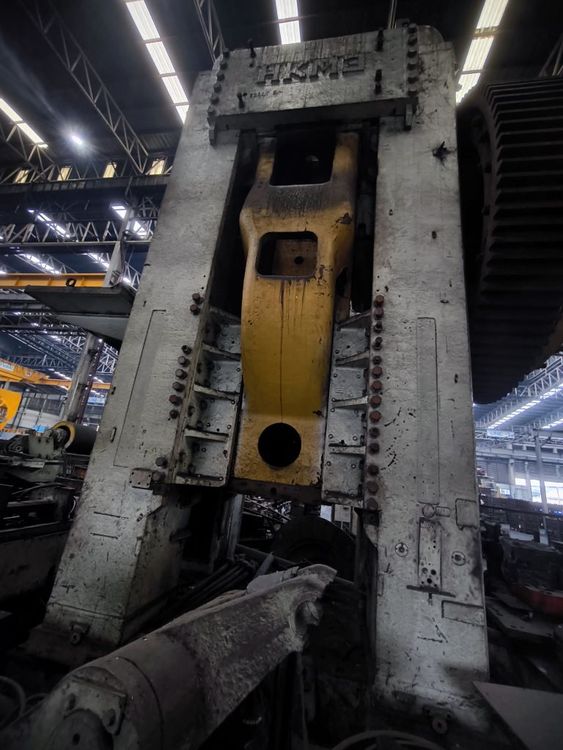

Kramatorsk, NKMZ Forging press Kramatorsk NKMZ 6300 ton 6300 ton

Forging press Kramatorsk NKMZ 6300 - 6300 ton
Model: Kramatorsk 6300
Rated capacity: 6300 ton
Slide stroke: 460 mm
Slide strokes per minute (continuous): 40
Shut height: 1150 mm
Adjustable distance between table and slide: 15 mm
Distance between uprights clear: 1950 mm
Table working surface:
L-to-R: 1600 mm
F-to-B: 1900 mm
Slide dimensions:
L-to-R: 1680 mm
F-to-B: 1680 mm
Top ejector stroke: 100 mm
Bottom ejector stroke: 230 mm
Uprights openings dimensions:
Width: 1100 mm
Height: 1250 mm
Main drive motor power: 400 kW
Overall dimensions:
L-to-R: 8600 mm
F-to-B: 5900 mm
Height above floor level: 9300 mm
Weight: 658 ton
