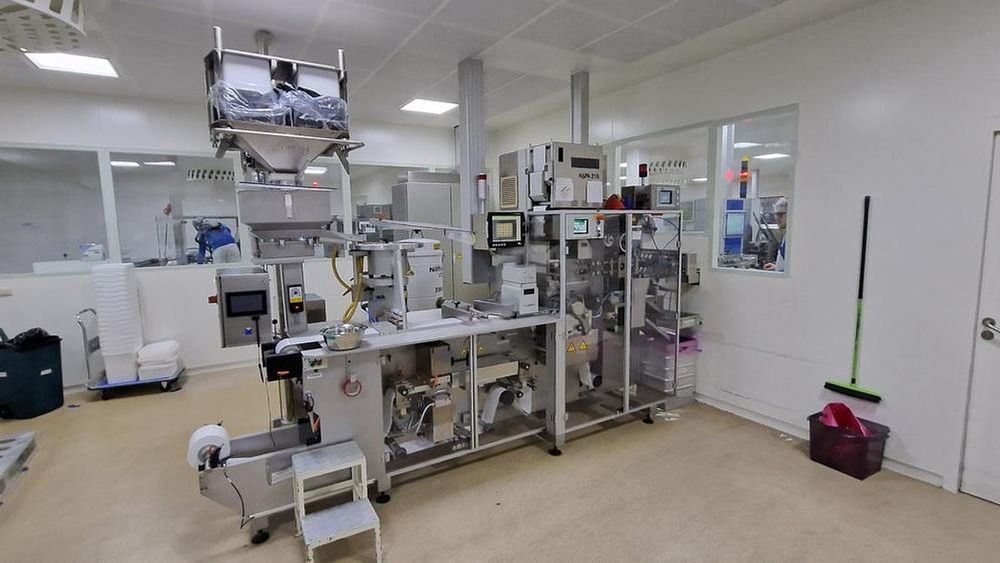

Noack N 916

Equipped for aluminium/PVC/PVDC/PP, 1 way
Roller Sealing
Maximum sheet width: 160 mm
Maximum blade advance: 138 m

Maximum depth of drawing: 12 mm
Max. die cutting dimensions 150 x 136 mm.
Max. yield 70 molding/min cycles, max. 200 die cutting cycles/min.
Ø of 700 mm moulding sheet, Ø of 250 mm coating sheet.

3 product feeders: directional feeder, roller feeder, brush box with own control (new in 2012).

Monochrome printing unit for Hapa H-216-C coating sheet, year of manufacture 2000, incomplete (no technical inspection)

Encoding station with embossing unit
Drilling station

New in 2012: filling control Color camera Laetus TLU LED PAL LXS MR with NAVIGATOR software and POLYPHEM wt touch screen/review unit
New in 2014: conveyor belt to the following machine with blister separation
New in 2014, complete remodeling of control by Romaco:
Wiring
Elau Servos
Elau PacDrive C400 A8 multi-axis controller
2 Elau PacDrive MC-4 servo controllers
PLC Wago 750-338 field bus coupler
HMI Micro Panel XVS 460
Modem
Riedel refrigeration unit

Various spare parts.
Different format tools for 2 x 5 tablets/capsules with blister sizes of 77.5 x 31.4 mm, 79.5 x 30.0 mm, 102.0 x 42.0 mm, 102.0 x 57.0 mm (No guarantee of completeness)
Drive 400 V/50 Hz
