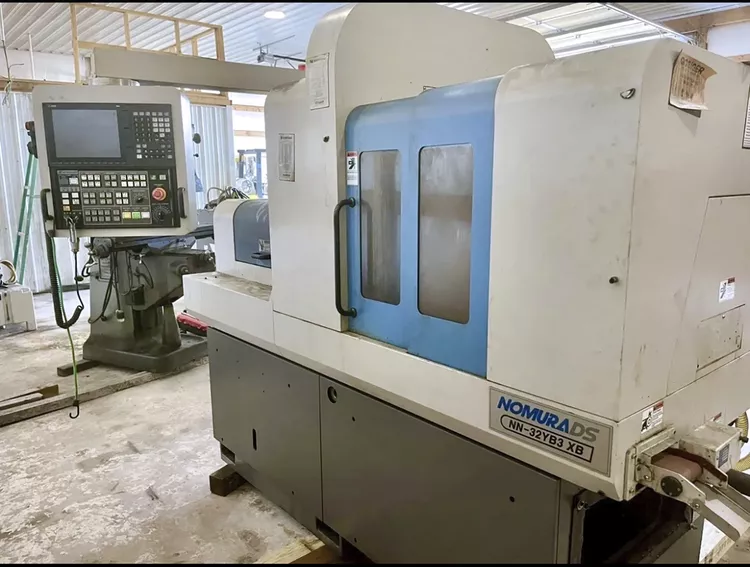

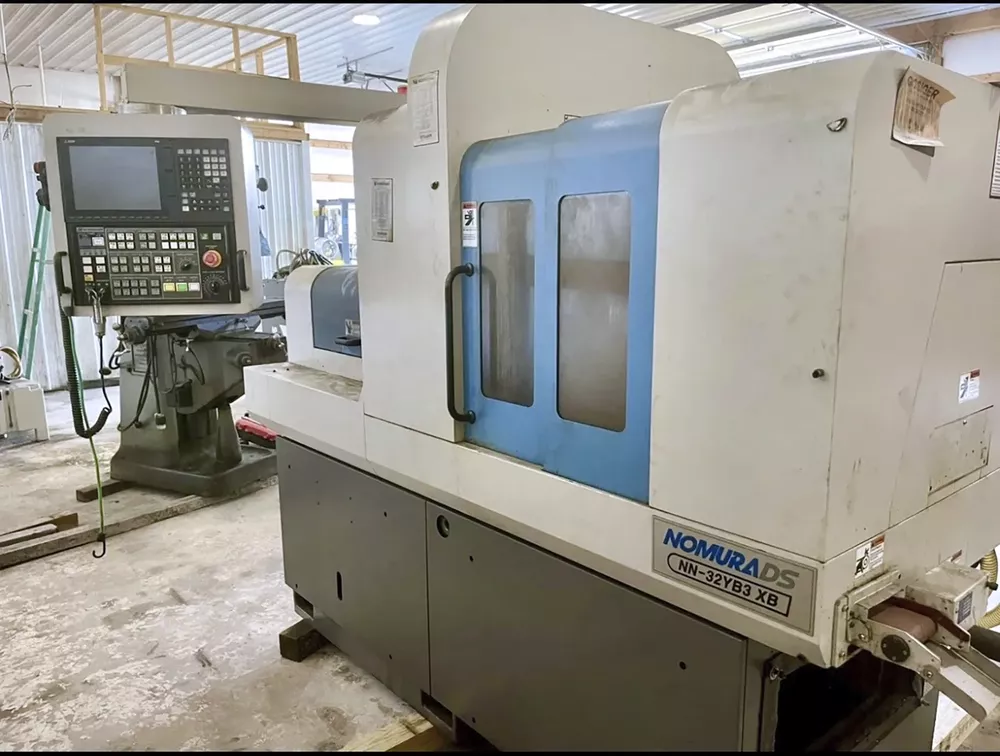

Nomura CNC CONTROL 8000 RPM NN-32YB3 2 Axis

Max. Machining Diameter 32mm
Max. Machining Length 190mm / 1 chuck
Max. Parts Unloading Length 93mm
Main Spindle Through-Hole Diameter Ф37mm
Spindle RPM (Main/Sub) Max. 8,000 RPM
Sub Spindle Chucking Diameter 32mm
Max. Number of Tools 39
Max. Machining Drill Ф13mm
Max. Machining Tap M10
O.D. Tools 6 (□16x150mm max)
I.D. Tools 6 (ER16x5 + OP5 tools) + 1 (ER20x1 + OP1 tools)
Cross Drill (B Axis) RPM 6,000
Rapid Feed Rate X1 20 m/min
Rapid Feed Rate X2 25 m/min
Rapid Feed Rate Z1,Z2,Y1,Y2 28 m/min
Min. Command Unit 0.0001mm
FMB Turbo Barfeed
Mist Collector
Sub Spindle Chuck Sleeve / Spring / Spindle Cap (1 set)
Automatic Power Turn-Off Device
Automatic Oiling Device (Level Detector Attached)
Cutting Oil Device (Main/Sub)
Coolant Failure Detector (Main/Sub)
Automatic Fire Extinguisher
Rear Ejection Unit (Ф24mm or less)
Spindle Tube Liner for Small Part
Large-Sized Lubricant Pump 1.8ℓ
Chip Conveyor & Chip Box
Medium / High Pressure Coolant
Long Drill Holder
Fixed Guide Bush
