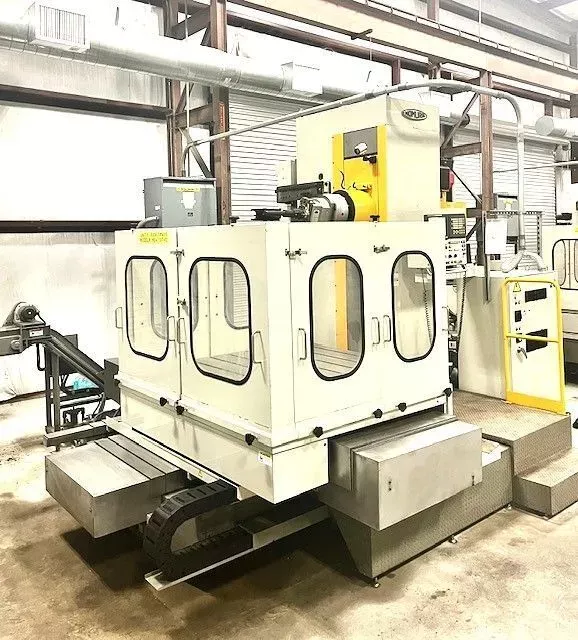

Nomura HBA-110T-R2 4.33" 3,000 rpm

X-axis travel 59.1"
Y-axis travel 45.3"
Z-axis travel 34.4"
W-axis travel 15.7"
B-axis 0.001° indexing

Control Fanuc 0iMB CNC Control
Control Fanuc 18iMB CNC Control
Spindle diameter 4.33"
Spindle speed 3,000 rpm
Spindle taper 7/24 taper No. 50
Max spindle torque 790 ft-lbs
Max spindle thrust 3,305 lbs
Table size 45" x 45" rotary table
Table load capacity 6,600 lbs
Rapid traverse X/Y/Z 472.4"/min
Rapid traverse W 236.2"/min
Feed rate 0.04"/min–236"/min
Table rotation speed 540 deg/min
Spindle drive motor 30 HP
Machine height 139"
Required floor space 145" x 223"

Features / Equipment
ITS contouring and facing head option
Spindle chiller
Hydraulic tank adjustable on layout installation
Low cutting hours 653
