Nomura HBA-135P.R5 5.31” 3,000 RPM (3 RANGES)

Nomura HBA-135P.R5
Year: 2013

SPINDLE DIA. ................ 5.31”
SPINDLE SPEED ............... 5 TO 3,000 RPM (3 RANGES)
X/Y/Z TRAVEL ................ 118.1”X 90.5”X 55.1”
SPINDLE TRAVEL .............. 27.5” W-AXIS
TABLE SIZE .................. 71”X 79”
LOAD CAPACITY ............... 33,000 LBS
B-AXIS TABLE INDEXING ....... 0.001 DEGREE
DRIVE MOTOR ................. 60 HP
TOOL CHANGER ................ 60 POSITION
SPINDLE TAPER ............... CAT-50
MACHINE HEIGHT .............. 182"
REGUIRED FLOOR SPACE ........ 265" X 285"
APPROXIMATE MACHINE WEIGHT .. 88,2000 LBS


EQUIPPED WITH:

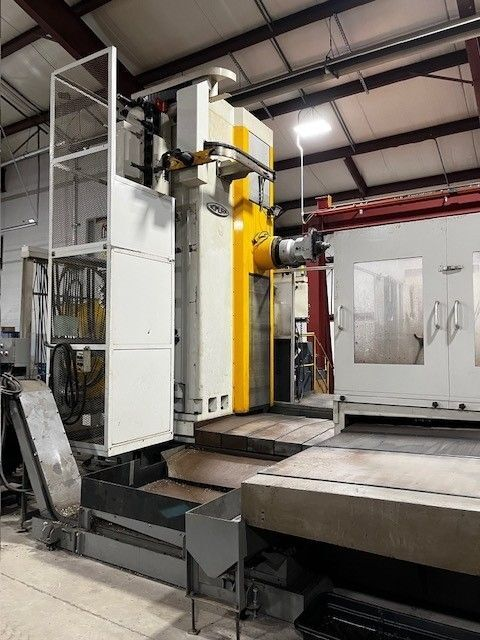

HBA-135 SERIES CNC TABLE TYPE HORIZONTAL BORING AND MILLING MACHINE
FANUC 31I CNC CONTROL
• 5.3" SPINDLE DIAMETER
• OVERSIZED LARGE DIAMETER BALL SCREWS AND FEED MOTORS
• NITRIDED HARDENED, GROUND AND HAND-LAPPED SPINDLE (HRC 67+)
• EXTRA-LARGE SPINDLE BEARINGS WITH OIL-MIST COOLING DEVICE
• FULL CNC CONTROLLED B AXIS ROTARY TABLE WITH DOUBLE WARM
• THREE RANGES OF GEARED-HEADSTOCK WITH 60HP SPINDLE MOTOR (2,930 FT. LBS)
• THE BED, THE SADDLE, THE COLUMN AND THE TABLE ARE OF HIGH GRADE FC 300 IRON
• ALL THE SLIDEWAYS ARE HARDENED AND GROUND
* CHIP CONVEYOR
* COOLANT THROUGH THE SPINDLE
