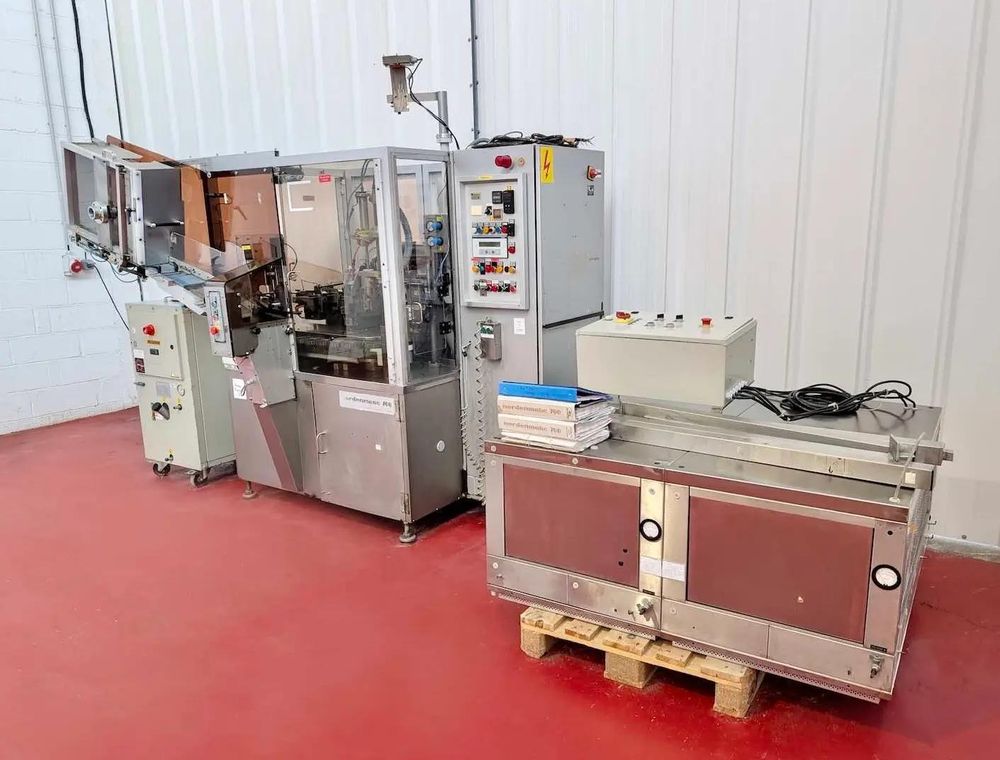

Norden NORDENMATIC 700 Tubes Filler

Cleaning + Tube orientation device with a stepper motor
Sealing Module: HA – Hot Air
Number of buckets: 22 units
Product feed hopper + dosing pump
Laminar flow
Vulcanic Vulcatherm cooling unit (year: 2004) – 3.5 kW (10°C – 35°C) / Outlet temperature: 25°C max – min 3°C

PRODUCTION
Capacity: 70 tubes (max)
Tube size range: Length: 50-250 mm; Diameter: Ø 10-50 mm


Filling volume: 1 – 300 ml
Dosing accuracy: +/- 0.1-0.5%
Empty tube feeding: automatic


DIMENSIONS
Size: 1350 x 1900 x 2100 mm
Weight: 2 400 kg
