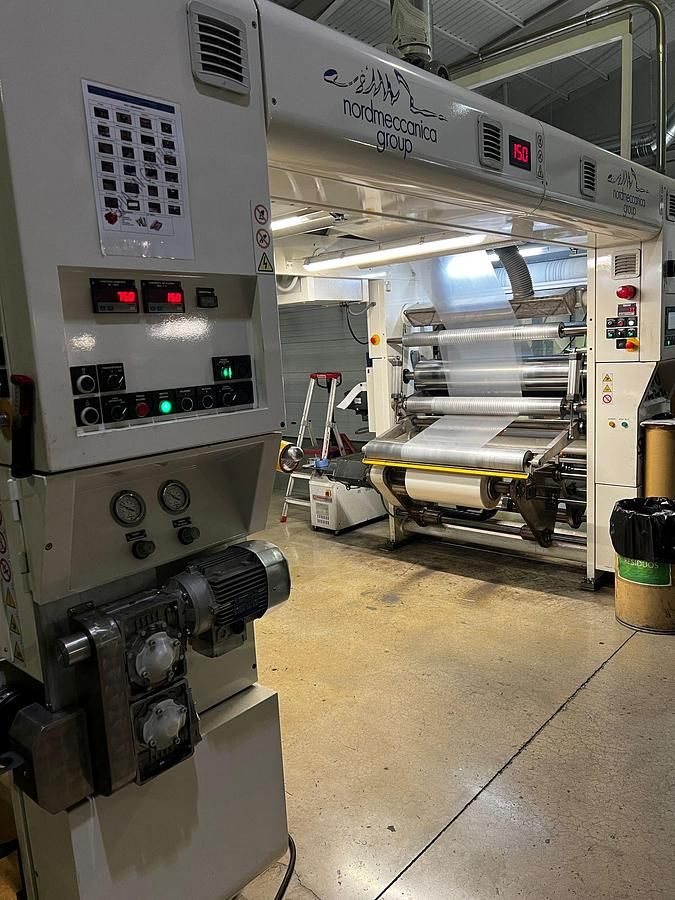

Nordmeccanica SIMPLEX SL 1100 Solventless laminator

Condition Used (visible in production)
Type Duplex lamination (A + B)
Max web width (Min-max) 550 - 1130 mm
Nominal width 1100 mm
Max possible application width 1115 mm

Materials that can be processed for the application (unwinder A) :
ALU 12 ÷ 40 μm | BOPP 12 ÷ 80 μm
CALENDERED PAPER 40 ÷ 300 g/m2
LDPE, LLDPE 30 ÷ 200 μm
NYLON CAST 30 ÷ 80 μm
OPA 12 ÷ 18 μm | PETP 10 ÷ 30 μm
PP CAST 60 ÷ 150 μm

Materials that can be laminated (unwinder B):
ALU 7 ÷ 40 μm | BOPP 12 ÷ 80 μm
CALENDERED PAPER 40 ÷ 300 g/m2
VARIOUS COEXTRUDED MATERIALS 25 ÷ 200 μm
EVOH 12 ÷ 20 μm | LDPE, LLDPE 20 ÷ 200 μm
NYLON CAST 20 ÷ 80 μm | OPA 12 ÷ 18 μm
PETP 8 ÷ 30 μm | PP CAST 20 ÷ 150 μm
PVC 20 ÷ 300 μm

1st & 2nd unwinder - Type Shaftless
1st & 2nd unwinder - Reel diameter Ø 850 mm
1st & 2nd unwinder inner core diameter Ø 3” and 6"
Unwinders (1st and 2nd) Max. reel weight 600 Kg
Unwinders Min-max web tension 2 - 20 Kg (20 - 200 N)
Rewinder - Type Shaftless (with motor)
Rewinder inner core diameter Ø 6"
Rewinder Reel diameter Ø 850 mm
Rewinder Max. reel weight 600 Kg
Rewinder Min-max web tension 4 - 25 Kg (40 - 250 N)
Additional information MIXER VEA (two-component)
Mechanical speed 10 ÷ 315 m/min
Noise emission < 80 dBA
