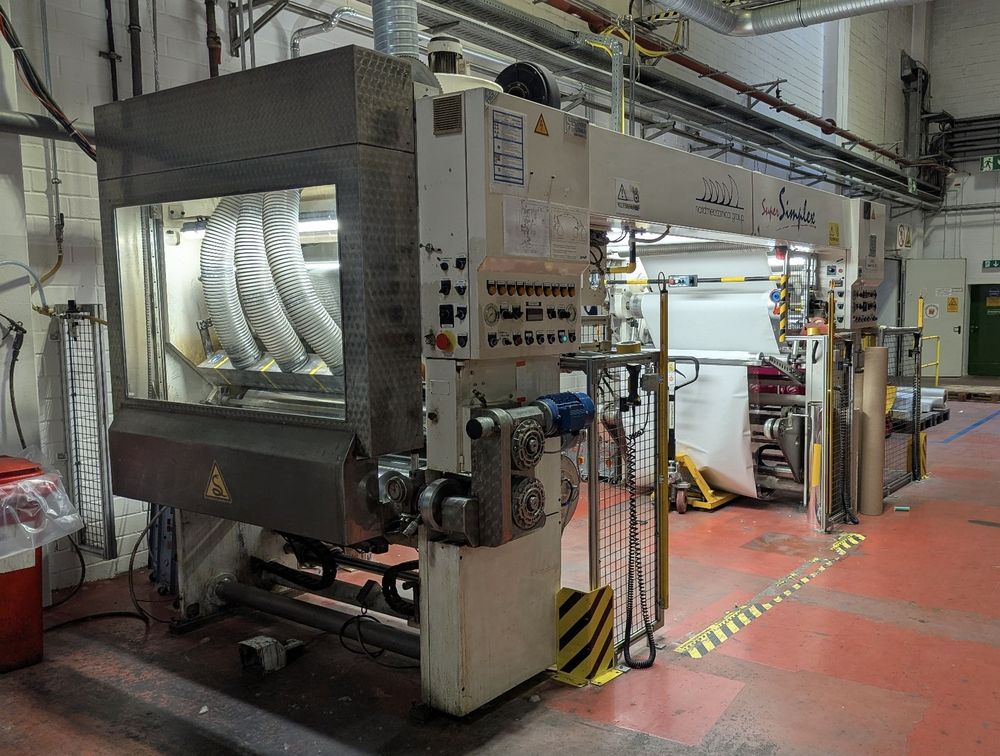

Nordmeccanica SL 1300 Laminating machine

Web width: 1,300 mm
Lamination type: Duplex (two-ply)
Adhesive system: 2-component, solventless
Mechanical speed: 300 m/min
Unwind diameter: 800 mm (shaftless, single-position)
Rewind diameter: 800 mm (shaftless, single-position)
Core diameter: 3"
Web direction control: Integrated web guiding system
Corona treatment: 1–2 corona stations
Heating: Electric heating with temperature regulation system
Coating rollers: Coating head with staggered application rollers for solventless adhesive, configured for accurate laydown control

Main Features:
Shaftless single unwind station
Shaftless single rewind station
Duplex configuration for solventless adhesive lamination
Corona treater for surface activation
Electric heating for coating unit
Temperature control system
Web guide for precise alignment
Coating head with multiple rollers for flexible adhesive laydown
Two-component solventless adhesive system (external mixer may be required)
Solid steel frame for vibration-free operation
Easy access for maintenance and cleaning
Operator-friendly controls
