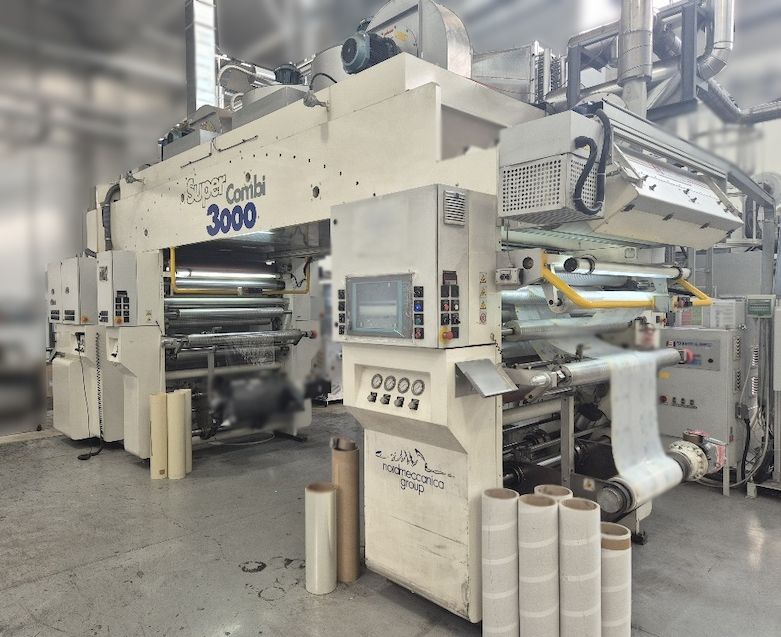

Nordmeccanica SUPER COMBI 3000 Laminator

For solvent-based, solventless, and water-based lamination processes
Web width: 1300 mm
Max mechanical speed: 400 m/min (depending on materials and process)
Substrate types: Film, foil, paper, and combinations thereof

Main Components and Features:
Automatic web tension control across all unwinds and rewinds
Motorized adjustment for nip pressure and web alignment
Touchscreen HMI for process control and recipe management
Modular design for easy access and maintenance
Web inspection and defect detection (if installed)
Corona Treatment Unit

Ensures surface energy of substrates is optimized for adhesive anchorage
Integrated into the unwinding section
Adjustable power output based on substrate requirements
Nordmeccanica Solventless Mixing Unit Continuous, inline mixing of two-component adhesive system

Equipped with:
Precision gear pumps for both A and B components
Automatic ratio control and monitoring
Pumps for continuous filling to ensure uninterrupted production
Easy-access design for cleaning and maintenance

Drying Tunnel
Equipped with 2 thermal oil heating batteries
Provide stable and efficient heat transfer
Maintain consistent tunnel temperature, essential for proper adhesive drying
Integrated with 2 modulating valves
Automatically adjust the thermal oil flow
Enable fine control of tunnel temperature for different lamination applications
LEL (Lower Explosive Limit) Monitoring System Zellweger LEL sensor. Continuously monitors solvent vapor concentration
