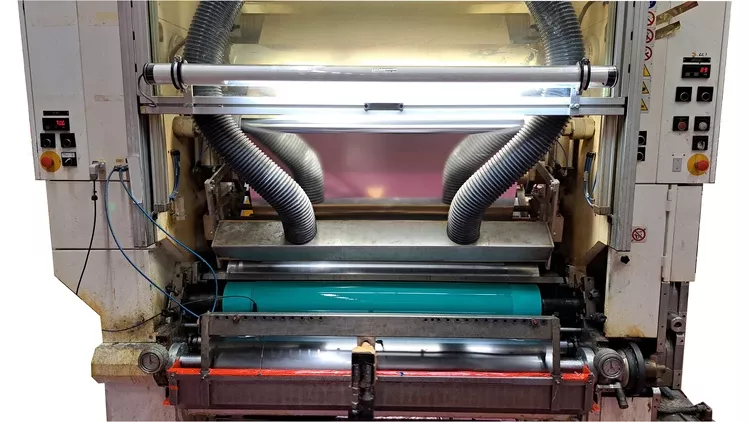

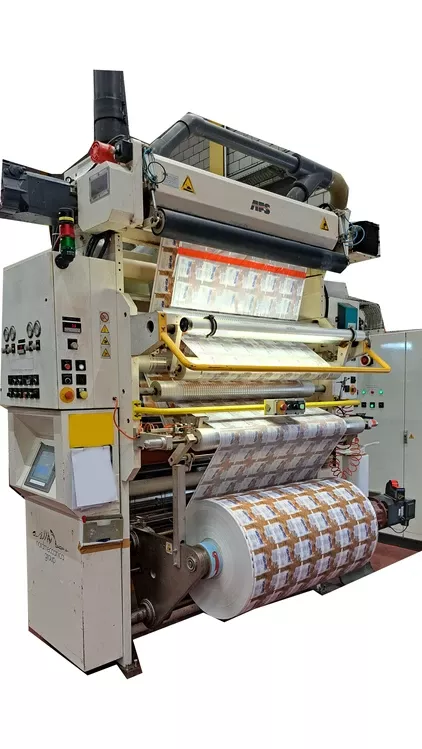

Nordmeccanica Super Simplex SL L 1300 Laminator

Material width 400-1320mm
laminating width 400 - 1300mm
unwinder 1 1m diameter rolls, 3 or 6" cores
unwinder 2 1m diameter rolls, 3 or 6" cores
rewinder 1m diameter rolls 6" cores

machine dimensions (approx.) 6m x 3m x 4m high
in current use, can be seen running
available april 2025
electrical requirements: 3ph x 400 / 230 Volt, 50 Hertz.

The seller has decided to include the mixer and adhesive dosing system with the laminator.

Sold with mixer

Mixer specifications

Type of equipment 2K mixing and dosing unit for solventless PUR laminate adhesives.
Autom. checking and dosing of mixing ratio, application rate and pressure. The autom. flow regulation adjusts the dosing rate per the speed of the coater.
The visualized control panel shows all parameters.
The built-in printer records all data with date and hour.
Manufacturer 2 KM GmbH
Type PGM Laminat LF
Year of manufacturing 2014
Dosing pumps With geared wheels.
Static pre mixer
Mixing ratio Stepless adjustable from 1:6 upto 6:1.
Flow rate 200 upto 2 000 grams per Minute. Depending on viscosity and mixing ratio.
Level check at the roller gap and measurement of coating thickness.
Visualized touch screen controls For simple and safe operation and highly reliable mixing and dosing. Control panel with key switch. Printer.
New heating hoses March 2025.
Cost was 3 800 CHF.
New piston pump March 2025.
Cost was 4 700 CHF.
Electric connection 400 VAC, 50 Hz, 4 kW, max. 16 Amp.
Compressed air connection 6 bar
Low consumption.
Dimensions 1200 x 800 x 900 mm high.
Weight Approx. 560 kg.
Condition Preowned.
Currently installed and optimized to above mentioned Super Simplex, in production. In good condition, per current users.
