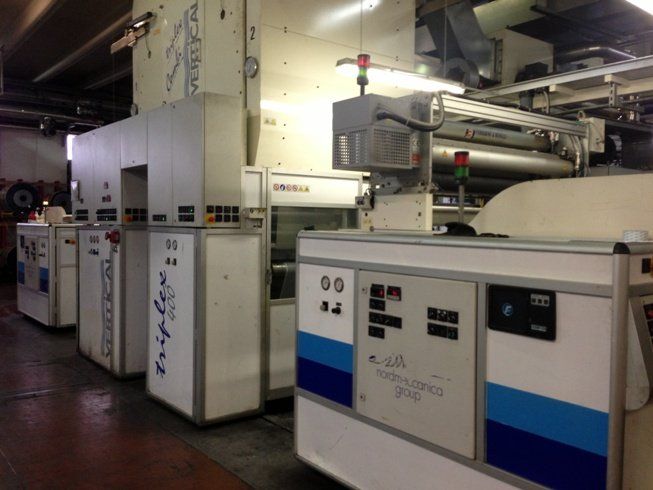

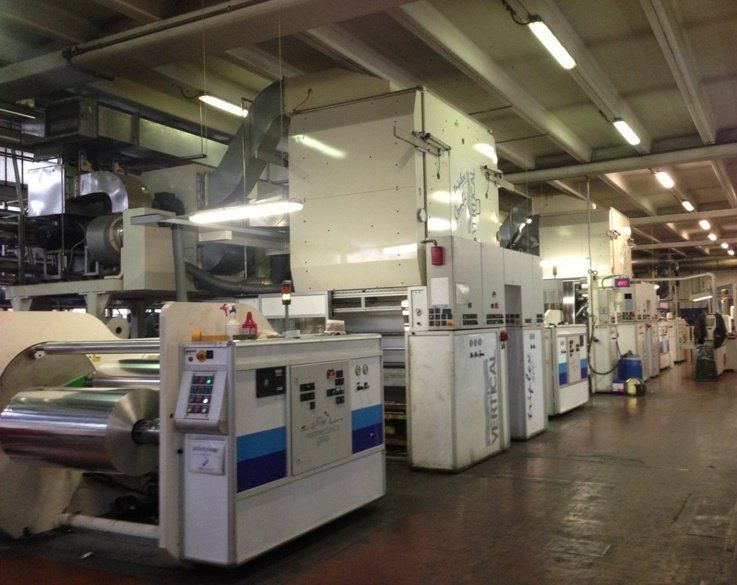

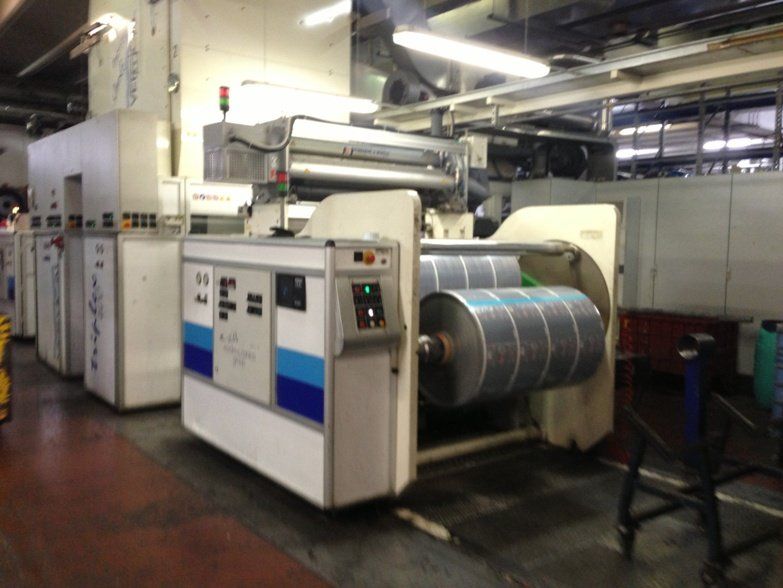

Nordmeccanica TRIPLEX COMBI Laminator / coating machine

Application Triplex lamination
Type of lamination/coating COMBI / INTECHANGEABLE TROLLEY
Working width (mm) 1300
Materials all plastic film and paper , alu foil
Speed 400 mpm
First unwinder type Turret automatic
Max diameter reel unwinder 1000
Secondary unwinder type Turret automatic
Max diameter reel unwinder 1000
Third unwinder type Turret automatic
Max diameter reel unwinder 1000
Rewinder type Turret automatic
Max diameter reel rewinder 1000
Coating unit solvent based trolley
Second Coating unitr solvent based, solventless, cold seal coating
Drying 2 coating sections each one two drying zones , three fans 7,5 mt driers , thermo oil heaters, automatic recirculation wih LEL control by NIRA
Register controll yes on second coating unit for cold seal
pumping mixing unit World mix
Corona treatment 2 corona treaters Ferrarini Benelli complete with ozone exhaust and treatment
Viscosity control for solvent based adhesive.
4 heating units for solventless trolley.
2 chillers Frigosystem
