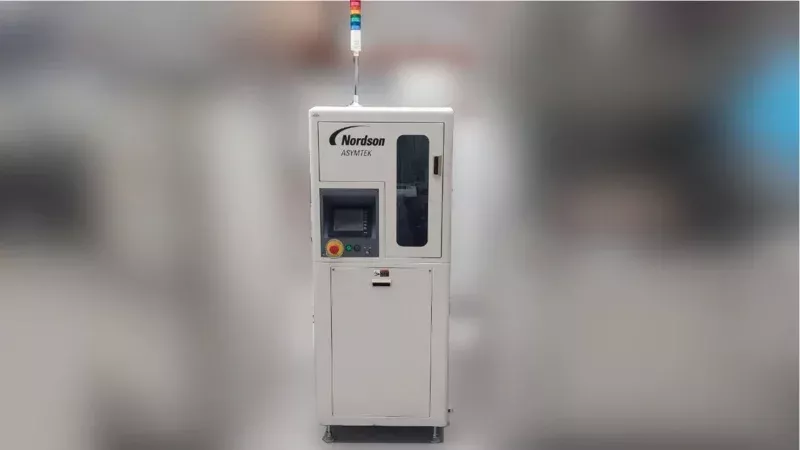

Nordson Asymtek MH912L

Features
Dual lane

This machine can provide 2 production lines with circuit boards
Line 1 can receive boards from Rack 1, and same goes for Line 2 and Rack 2
Line 1 and 2 are both being provided with boards from Rack 1, and/or Rack 2

Same-Side Loading&Unloading
This means that the machine can both function as a LOADER and an UNLOADER for 1 machine.
This makes it possible create small but effective islands.
Programming

All the programming is being done , through the color LCD
SMEMA
The machine has 2 individual SMEMA interfaces.

Below are more specifications about this versatile machine
As part of the MH-900 series the MH-912L can be configured for
inline or Same-side Loading operation, and supports both single or
dual lane conveyors.
Loader controls can be intergrated with the Spectrum S-900N and
Spectrum II S2-900 Series dispensers or operate independentely with
other SMEMA equipment.
The loader easily manages a wide range of parts, from extremely thin
frames or strips to large heavy boats or pallets.
Capacity is flexible; the system can handle multiple magazines for
reduced loading frequency. PLC control enables future expandability when
the process needs change.

Nordson Asymtek MH-912L Specifications
Magazine width Min: 15 mm (0.59 in.)
Max: 172 mm (6.8 in.
Magazine Length Min: 50.8 mm (2.0 in.)
Max: 317.5 mm (12.5 in.)
Magazine Height Min: 101.6 mm (4.0 in.)
Max: 279.4 mm (11.0 in.)
parts per magazine 1 to 99
Part length Min: 50.8 mm (2.0 in.)
Max: 317.5 mm (12.5 in.)
Part Width Min: 15 mm (0.59 in.)
Max: 160 mm (6.3 in.)
Part thickness Min: 100 µm (0.004 in.)
Max: 18 mm (0.71 in.)
Min frame pitch within magazine 2.54 mm (0.10 in.)
Overboard clearance 25 mm @ 3 mm (0.98 @ 0.12 in.) from edge of part
Underboard clearance 25 mm @ 6.5 mm (0.98 @ 0.26 in.) from edge of part
Edge clearance required 3 mm (0.12 in.)
Max. magazine weight: 6.8 kg (15 lb)
Max. carrier weight: 0.9 kg (2 lb)
Max. elevator payload: 40 kg (88 lb)
Facility requirements
Dimensions (Width x Depth) 625 mm wide x 1250 mm deep (24.6 x 49.2 in.)
Voltage 110-240 VAC, 50/60 Hz
Amperage 1.0A nominal, 1.5A peak @ 120 VAC
Air supply 552 kPa (80 psi), 1 SCFM @ 80 psi
Weight 230 kg (507 lbs)
