Asymtek, Nordson SL-940

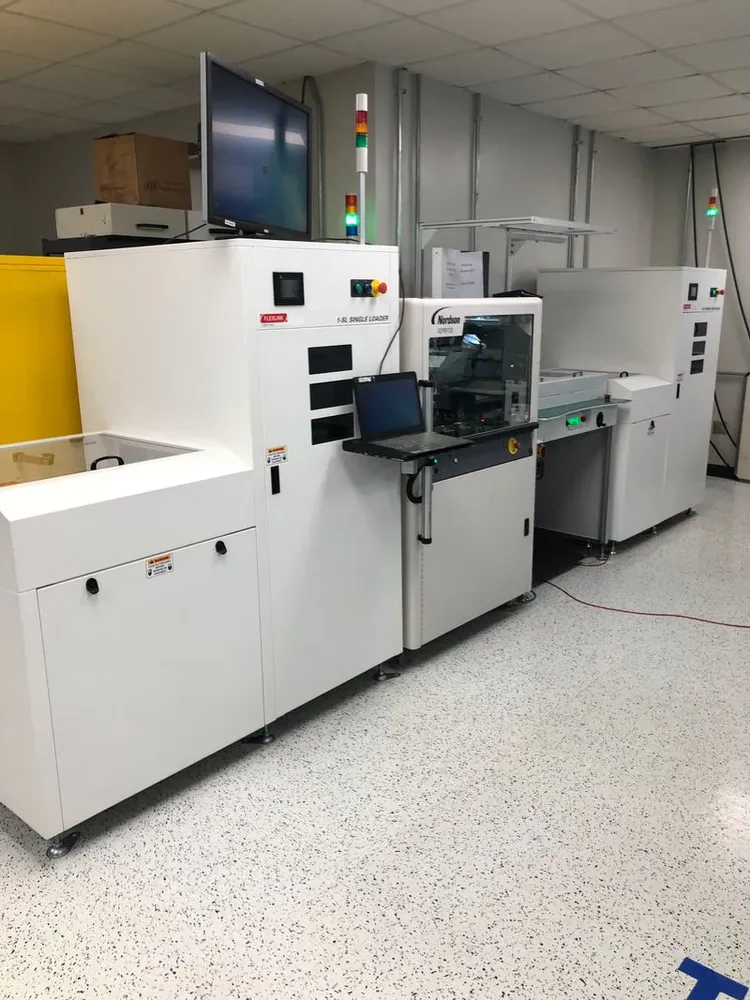

Nordson Asymtek SL-940, Dual Valve, Complete Conformal Coating Line With:
1- Nordson Asymtek SL940 2018 Inline Conformal Coating System, Dual Valve
DOM: 2/2018 OS: Windows 7 SW: Easy coat 6.1.2.1420

Configured with:
1 each: SC280 + 5axis control & SC400
Jet
Genie camera
Needle sensor
1 Gallon material tank is included.
2- YJ Link AWT-CE YJ Link AWT-CE 1M Conformal Coat inspection conveyor
w/ Dust Cover - 2018 Designed for use in various applications,
dust cover slides to the rear for board inspection
3- Flexlink 1-SL Loader SN # 1_SL-870028 -Single PCB Loader - Vintage: 2023
- The GENIUS 1-SL Single Magazine line loader is used when a magazine
of PC boards needs to be loaded into a production line.
This unit is capable of handling one magazine that can
easily be accessed from the front of the machine.
Module specification : Length 1545mm, Height 1705mm, Width 1000 mm
Air pressure Not required
PCB dimensions : Min : 2x3, Max 20x20" Board thickness 0.6 - 6 mm
4- Flexlink 1-SU Unloader - Single PCB Unloader Vintage : 2023
-The GENIUS 1-SU Single magazine line unloader is used to
facilitate the buffering of PC boards into a magazine at the end of a production line.
Module specification: Length 1345 mm, Height 1705 mm, Width 1000 mm
Air pressure Not required
5: Qty 6 COP-809D magazines. Adjustable width (10-460) overall size: 535 x 530 x 563mm.
6: ASYMTEK TCM-3300 IR Conformal Coating Cure oven - 6252 hours
DOM: 11/2006
10 zone IR Conformal Coat Curing oven
128" heating length
Board width 2 - 20"
Board clearance : 3.5" top / 3.5" bottom
Unique downdraft exhaust design provides an efficient,
safe path for VOC's removal
Power requirements : 480V 100A 3 phase
