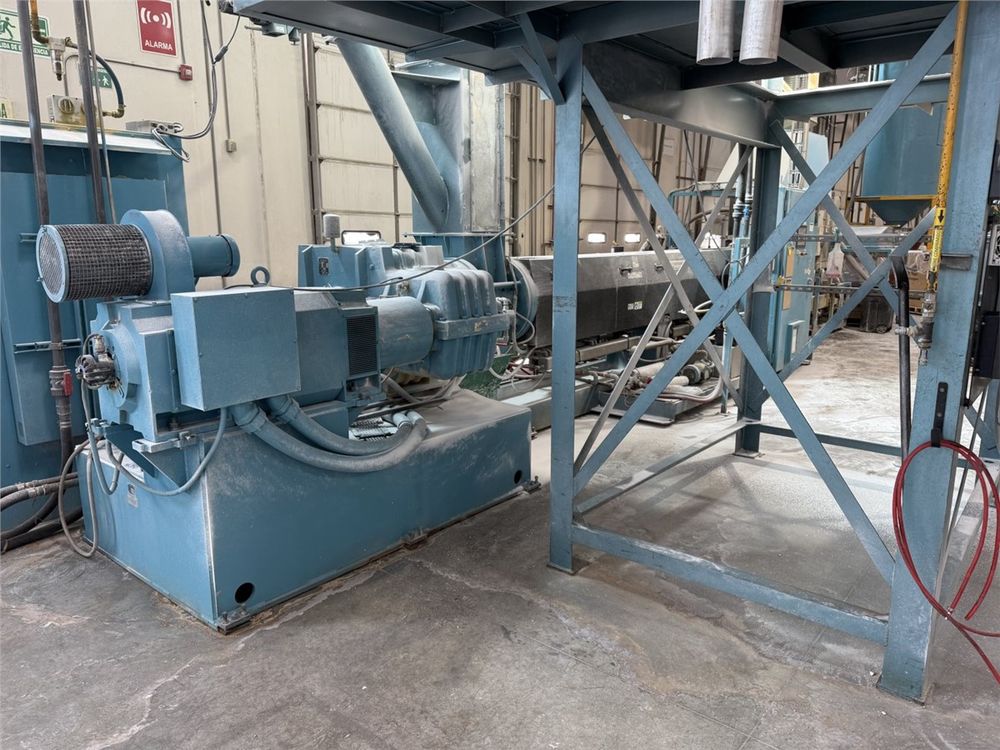

Davis Standard, Nordson Compounding Line With WRP-35S Pelletizer

6" Davis Standard
Compounding Line With Nordson WRP-35S Pelletizer, New In 2009
34:1 L/D Ratio, 17:1 Davis
Standard 60IN60T Gearbox Rated To 530 HP
Oversized Tangential Feed
Throat, Grooved Feed Throat Liner
Water-Cooled Barrel, 7 Zones
500 HP Reliance AC Motor With
Yaskawa F7 AC Inverter Drive
Vented Barrel With Vacuum
Pump For Vent With Holding Tank And Filter
Davis Standard DS-TPC Control
System With 12.1" HMI Touchscreen
8" Nordson EH-80 Screen
Changer, Hydraulic Power Pack With Accumulator
Nordson WRP-35S Water Ring
Pelletizer
Pelletizer Rated Up To 3,500 LBS/HR
3,600 RPM Cutting Head, Spin Dryer, And Water System
460/3/60
LINE CURRENTLY INSTALLED
