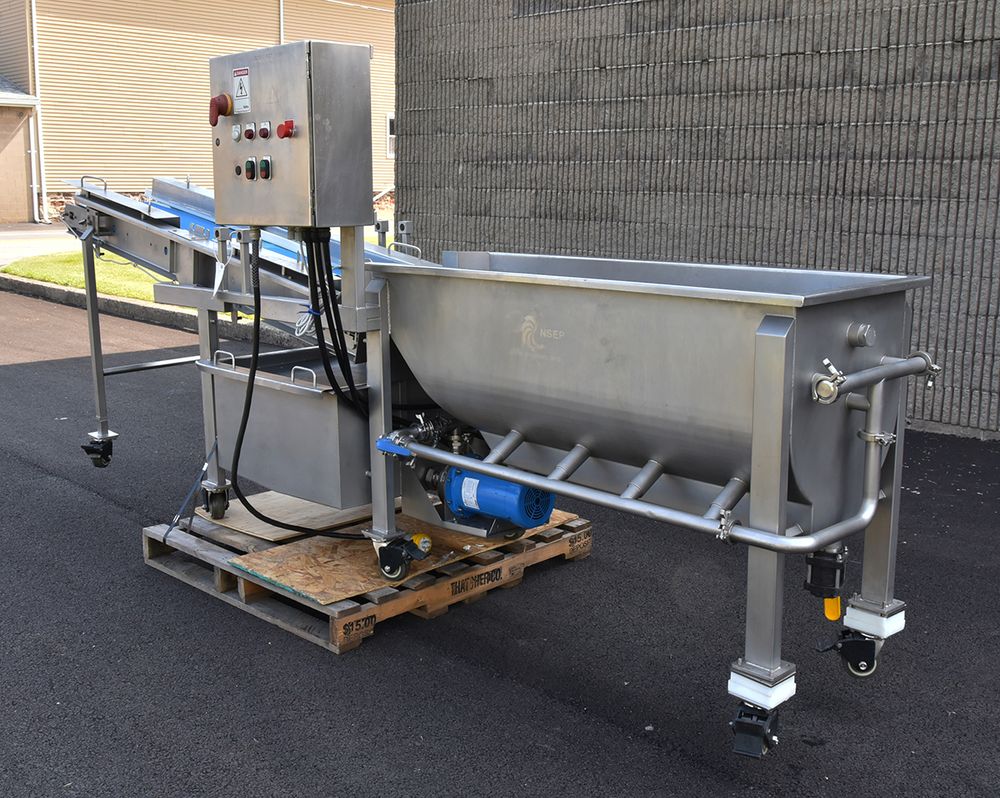

North Star Engineered Product HW2600, HELICAL WASH SYSTEM

Water-jet washer for pre-cut produce,
food grade stainless steel

FEATURES:
• This laminar-flow helical washer is 66 inches long by 20 inches wide by 24 inch deep U-trough with adjustable agitating water jets.
o Three (3) forward facing "push" nozzles.
o Four (4) "vortex" nozzles located along the left hand side.
• The wash tank overflows onto a 91 inch long by 16 inch wide ELEVATING DISCHARGE CONVEYOR with an interlocking chain type belt with fine perforations to allow the water to pass through while discharging the dewatered product onward.
• Conveyor powered by a .5 HP stainless steel shrouded motor.
• The water falls through into a stainless steel catch and balance tank equipped with:
o Recirculation pump powered 3 HP drive motor.
o Check-valve keeps the wash tank water from draining into the surge tank when the pump is shut off.
• Stainless steel factory control box with variable speed control.
• All food-grade sanitary stainless steel construction.
• Water jet nozzles are removable for sanitation.
• 460 volt 3 phase electrical input.
