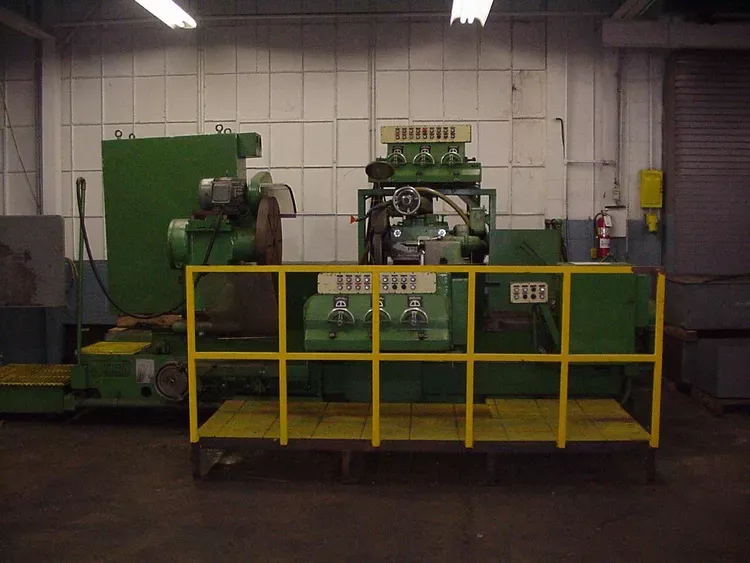

Norton 52 X 72

Maximum swing over table 54 in
Distance between centers 72 in
Longitudinal table travel 107.5 in
Table feeds variable
Table swivel 1.5 in in 0.025 in increments
Workhead swivel 360°
Grinding wheel diameter 20 in
Grinding wheel width 2 in
Grinding wheel bore 5 in
Grinding spindle double-ended
Wheelhead swivel upper slide 60°
Wheelhead swivel lower slide 90°
Workhead spindle nose cam-lock
Workhead speeds variable
Workhead live and dead centers
Semi-automatic tailstock
Rapid approach and return of wheel slide
Front and rear operator controls
Splash guards
Workhead motor power 5 hp
Wheelhead motor power 7.5 hp
Hydraulic pump motor power 5 hp
Coolant pump motor power 0.5 hp
Coolant tank and pump
Faceplate diameter 30 in
Work plate size 42 x 114 in
Machine dimensions 23 x 12 ft
Machine weight approx. 30000 lb
