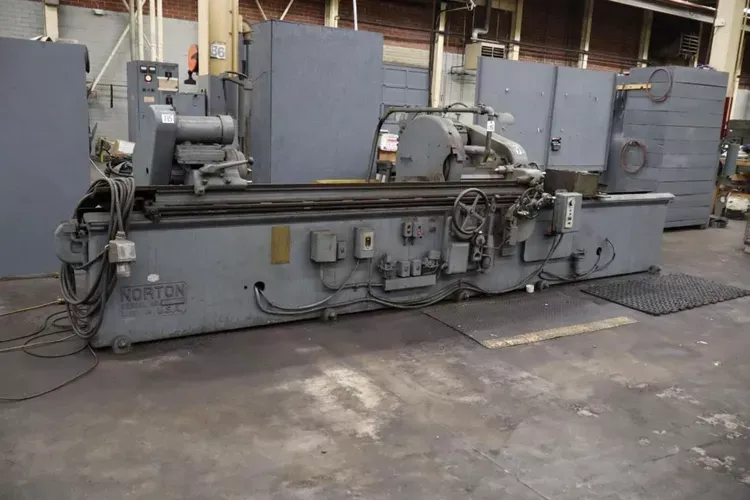

Norton C

Swing 10"
Centers 96"
Plain head
Grinding wheel diameter 30"
Wheel power 15 hp

Swing over table maximum 10.5"
Grinding diameter over table maximum 10"
Distance between centers nominal 96"
Grinding wheel diameter standard 4"
Grinding wheel width standard 3"
Grinding wheel hole diameter 12"
Grinding wheel width 30" wheel maximum 2.5"

Table longitudinal feeds range 5 to 360 IPM
Grinding wheelhead spindle motor 15 hp
Electrical system 220-440/3/60
Floor space required 21'3" x 6'5"
Weight approximately 15000 lbs

Hydraulic longitudinal table feed
Semi-automatic pick type in-feed attachment
Workhead with vari-speed drive
Tailstock lever-type
Coolant system tank and pump
