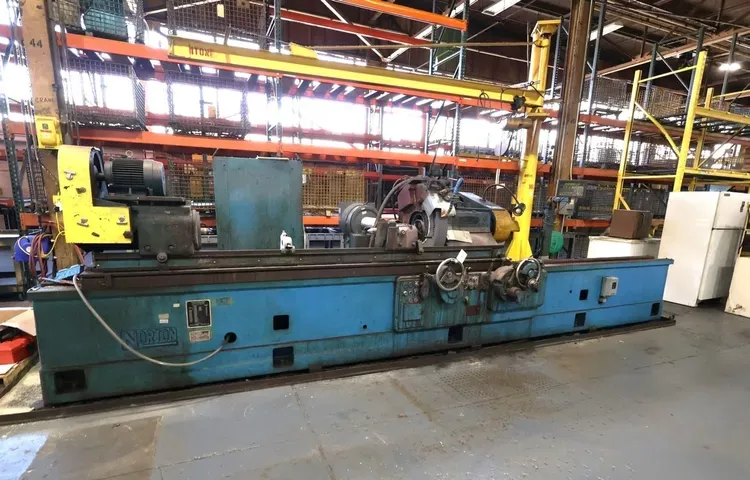

Norton LCTU

Swing 14.5"
Centers 96"
Plain or angle head Plain
Grinding wheel diameter 30"
Dresser Yes
Dimensions 246" x 124"
Weight 17,000 LBS
Shoulder grinding arrangement
Hydraulic longitudinal table feed
Updated U.S. Drives Phoenix Vector Drive Workhead
Table mounted wheel dresser - tailstock
Coolant system w/Dynapure mist collector
Swing over table, maximum 14.5"
Grinding diameter w/24" wheel, maximum 14"
Grinding diameter w/30" wheel, maximum 10"
Distance between centers, nominal 96"
Grinding wheel diameter, standard 30"
Grinding wheel width, standard 3"
Grinding wheel hole diameter 12"
Table swivel taper maximum, inches 1.25"
Table swivel taper maximum, degrees 3
Table longitudinal feeds, range 2 to 240 IPM
Headstock spindle diameter 4.125"
Headstock spindle taper #14 JARNO
Tailstock spindle diameter 2.75"
Tailstock spindle taper #14 JARNO
Electrical system 220-440/3/60
Floor space required 246" x 124"
Weight approximately 17,000 LBS
