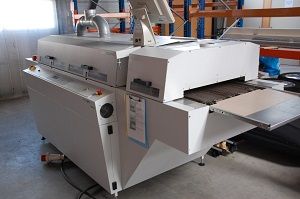

Novastar 2000HT Reflow Oven
EUROPE (Western and Northern)
1x, Novastar, 2000HT Reflow Oven
6 vertical heating zones plus cooling zone.
Low mass 20″ (508mm) wide
stainless steel conveyor
Status light tower included
Easy lift clamshell hood design
with gas strut assist
Edge rail conveyor option available
Real time graphic temperature profiler
to assist in profiling of board
PC interface software optionally available
Nitrogen gas inerting option available
Reflow oven is Lead and Lead-free compatible
Max board width 20″ (508mm)
Max board height 1.375″ (35mm)
Heating zones 6 Top, 6 Bottom
Max temperature 400°C (752°F)
Heat tunnel length 72″ (1829mm)
CyclonicsTM (forced air) Twelve (12)
Conveyor extensions Option
Cooling station(s) 4
Venting Three 4″ (102mm) dia.
Flanges, 200 CFM (340m3/h) each
Cooling Zone Venting 4
Nitrogen option Yes
