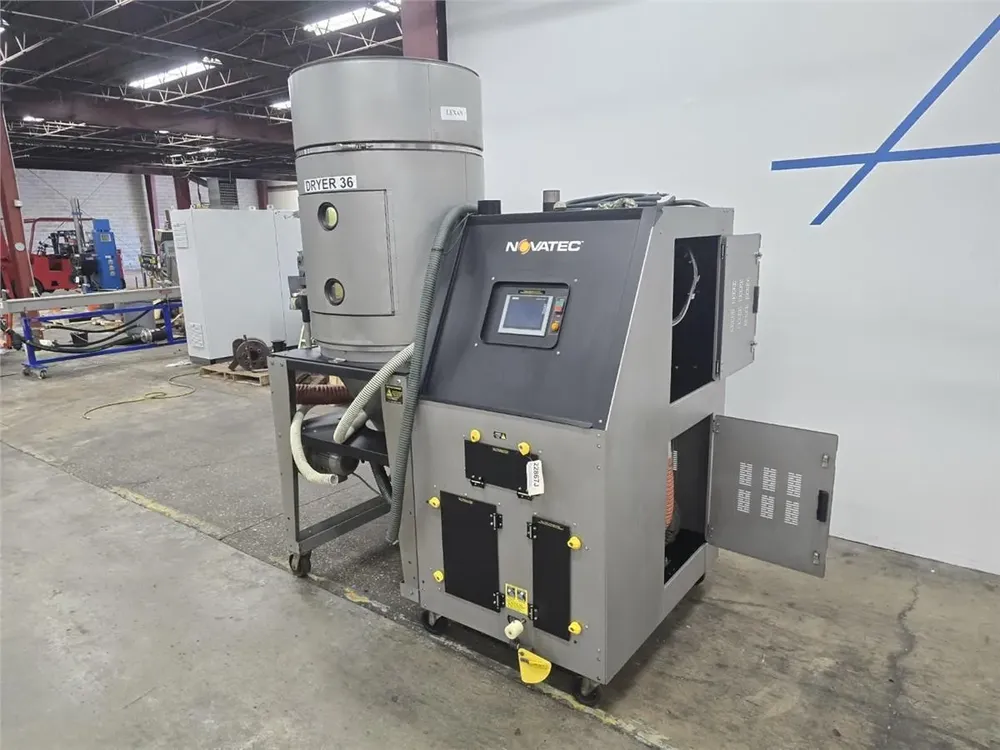

Novatec NWB-300-DC+

Voltage 460V
CFM 300
Capacity Throughput 300 lbs/hr
7" High Resolution Color Touch Screen PLC
300 Lb/Hr Maximum Material Flow Rate Per Manufacturer
Central Vacuum Blower for Conveying
Material Hopper, Hopper Receiver, Machine Mount Receiver, Flex Hose, Product Video
Hose Clamps and Pick-up Wand
VR-12 Hopper Receiver
VR-5MM Machine Mount Receiver
1.5" ID Air and Material Hose Connections
Automatic Monitoring and Alarm of Dryer Filter Condition
Cooling Coil With Plasticizer Drain for Drying Above 225°F
Vacuum Purge Valve / Machine Throat Conveying Setup
Process Air Dew Point Monitor / Analyzer
Nominal Process Air Dew Point: -40°F
Drying Temperature Range: 150°F to 350°F
NovaTouch PLC Controls With Clear Alarm and Diagnostic Messages
Portable Stand Mount With Casters for Mobility
Water Connections: 1/2"
Required Cooling Water Flow: 3.0 GPM
460/3/60, 48 Amps
38.3 KVA
Approximate Dimensions: 78" x 58" x 107" H
