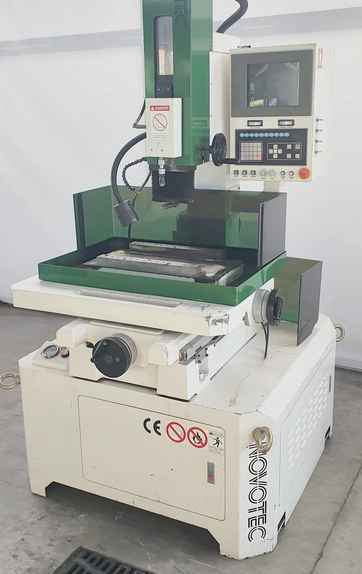

NOVOTEC SD-1014 Start Hole EDM (Spark Eroder)

Ref : 2796943-3-MT

Condition : Used

Manufacturer : -

Model : NOVOTEC SD-1014

Short Description : Start Hole EDM (Spark Eroder)

Year(s) : -

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-Axis Travel: 350 mm
Y-Axis Travel: 250 mm
Z-Axis Travel: 350 mm

Workpiece Size: 450 × 300 × 300 mm
Max Table Load: 150 kg

Electrode Diameter: 0.3 – 3 mm
Dielectric Tank Capacity: 20 L
Power: 4 kW

Machine Weight: approx. 900 kg
Machine Dimensions: 1130 × 1110 × 2330 mm
3 Axis
