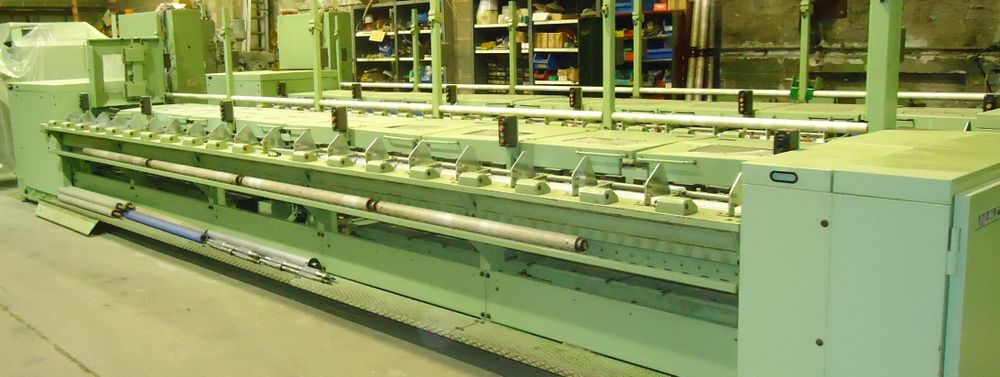

Nsc schlumberger FM8N Horizontal rubbing frame
Ref :
2711904-1-FM
Condition :
Used
Manufacturer :
Nsc schlumberger
Model :
FM8N
Short Description :
Horizontal rubbing frame
Year(s) :
1997
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
20 spindles, manual doffing
355mm pitch, 2 rovings per bobbin
input 12 to 15 ktex according to the material
roving weight 0.66 -5.5Nm, draft 9 to 26 by gear box

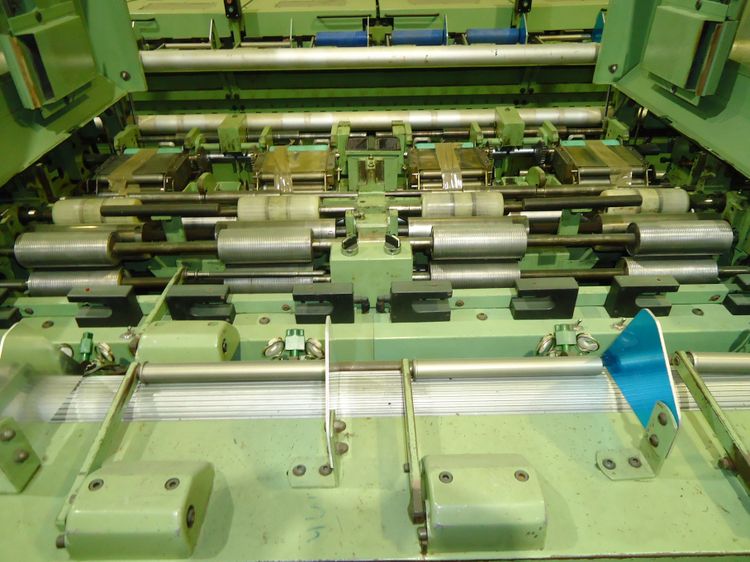

nsc double apron drafting, draft apron 145 mm wide
rubbing speed 1200 cycles /min maximum
number rubs 5 to 8 per meter, 300mm bobbin
delivery speed up to 220meters/min.
