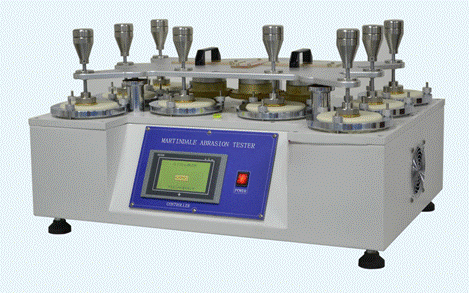

NU Martindale Abrasion tester

1. MARTINDALE ABRASION TESTER
2. MEET STANDARDS: ASTM D4970, ISO12945-2 ASTM D4966, ISO 12947

TECHNICAL PARAMETER:
STATION NUMBER: 8 STATIONS
COUNT DISPLAY:
ESTIMATED COUNTING:0~999999 TIMES
TOTAL COUNTING:0~999999 TIMES
MAXIMUM DYNAMIC RANGE: 24±0.5mm, 60.5±0.5mm
WEIGHT OF PRESSURE THING:
GRIPPER:200±1G
CLOTH SAMPLES HAMMER: 395±2G
FURNITURE ACCESSORIES SAMPLE HAMMER: 594±2G
STAINLESS STEEL BUTTERFLY PIECE: 260±1G
EFFECTIVE FRICTION DIAMETER OF GRINDING BLOCK:
TYPE: 200G (1.96N) FRICTION HEAD ¢ 28.8-0.084mm
TYPE: 155G (1.52N) FRICTION HEAD ¢ 90-0.10mm
THE RELATIVE VELOCITY OF GRIPPER AND THE GRINDING STATION: 50-2R/MIN
WEIGHT OF PRESSURE HAMMER: 2385±10G
DIMENSION: 885mm×600mm×410mm (L × W × H)
WEIGHT: 150KG
POWER: AC220V, 50Hz
