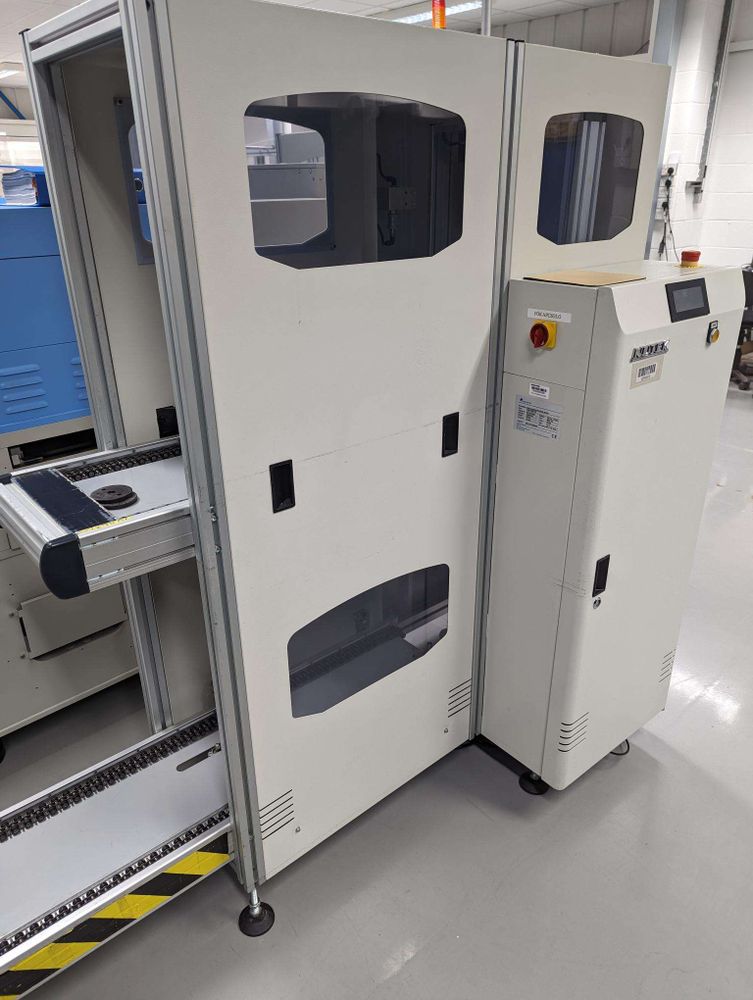

NuTek NTM110LM-HS Multi Magazin Line Loader

Nutek Multi Magazin Line Loader, M-Size
Type: NTM110LM-HS
Year of Manufacture: 2015
Direction: Left to Right
Transfer height: 950mm (+25/-40mm)
PCB size: 75 – 250mm (W)/ 80 -330mm (L)
Product thickness: 0.60 – 1.60mm
Component Height: Top: 30mm max/ Below: 30mm max
Voltage: 230V, 50/60Hz
Pressure: 4-6 Bar
Air consumption: 27L/min
Dimension (in mm): 1850(L) x 840(W) x 1750(H)
Weight: 236Kg

Function:
The loader is divided into three main assemblies:
Lifter
Input (Lower) conveyor
Output (Upper) conveyor

Lifter:
The lifter accepts a full magazine from the input (lower) conveyor. It will index upwards
until the set 1st slot of the magazine is at the transfer height. Upon receiving a
downstream busy signal, it will load a PCB onto the downstream machine.
Loading is done by means of a pusher cylinder assembly located inside the output
(upper) conveyor. The lifter will index upwards until the next slot of the magazine is
again at the transfer height.

The loading process repeats until the last PCB in the magazine is transferred out.
The empty magazine will be brought to the highest position and transferred onto
the output (upper) conveyor.

Input (Lower) conveyor:
The input (lower) conveyor allows a full magazine to be placed at it’s entrance and transfer it over to the lifter assembly. Stoppers are used to provide separating action,
allowing only one magazine to be transferred onto the lifter. Cam switches or sensors
are used in conjunction with the stoppers.

Output (Upper) conveyor:
The output (upper) conveyor receives the empty magazine from the lifter.
