NuTek NTM410DT-1000
Ref :
2778009-9-GO
Condition :
Used
Manufacturer :
NuTek
Model :
NTM410DT-1000
Year(s) :
2015
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

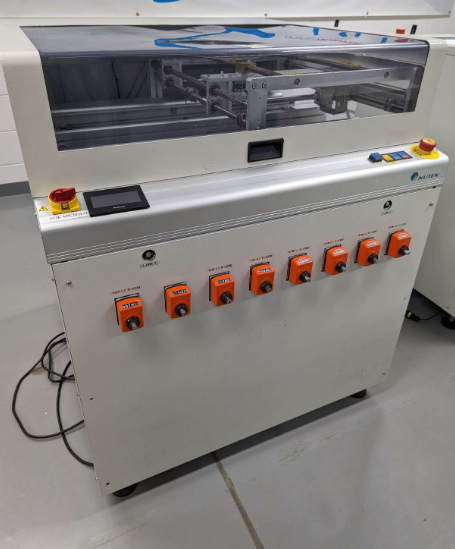

Nutek Dual Track Linking Conveyor, 1000mm
Functions: This machine transfers PCB from Upstream machine to
Downstream machine through a 2 Dual Track Single Lane conveyance via
communication signals. Only one PCB is allowed during each lane of transfer.
Direction: Left to Right, 1st Track Front Fix, 2nd track Rear Fix
PCB size: 70 – 250mm (W) / 80 – 330mm (L)
PCB thickness: 0.60 – 1.60mm
Component Height: Top: 30mm max/ Below: 30mm max
Transfer Height: 950mm (+25/-40mm)
Voltage:230V, 50/60Hz
Pressure: 4-6 Bar
Dimension (in mm): 1000(W) x 1100(L) x 1160(H)
Weight: 180Kg
