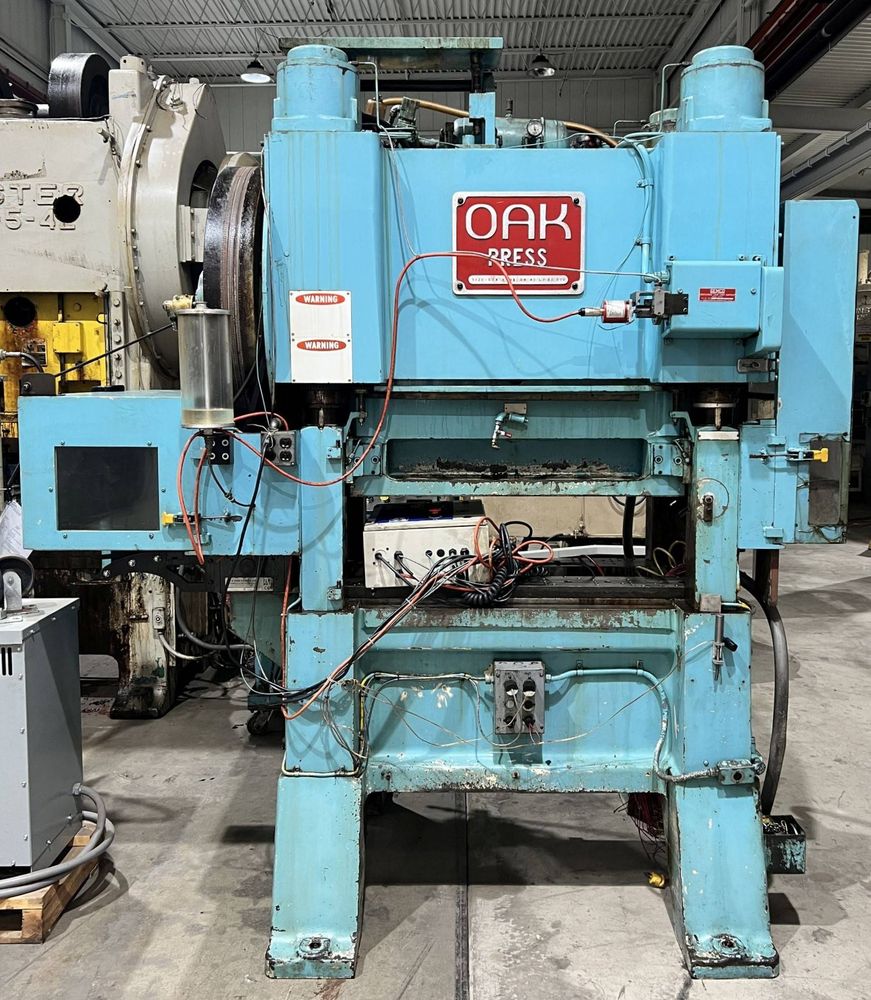

OAK 42-LP-60 60 ton

Press force: 60 ton
Stroke: 2"
Max shut height to bed: 16"
Bed area: 53.5" x 19.5"
Bolster plate: 53.5" x 19.5" x 4"
T-slotted bolster plate
Distance between uprights: 42.5"
Ram area: 42" x 20"
Ram adjustment: 3"
Speed: 133 - 400 SPM
Floor to bed height: 39.25"
Window size: 20.5" wide x 13" high
Allen-Bradley relay logic controller
Oak air clutch & brake assembly
15 HP motor
230/460V / 3PH / 60Hz
43 / 21.5 amps
Tie rod steel frame construction
Flywheel type drive
Approx. dimensions: 103" x 55" x 120"
Approx. weight: 12,500 lbs
