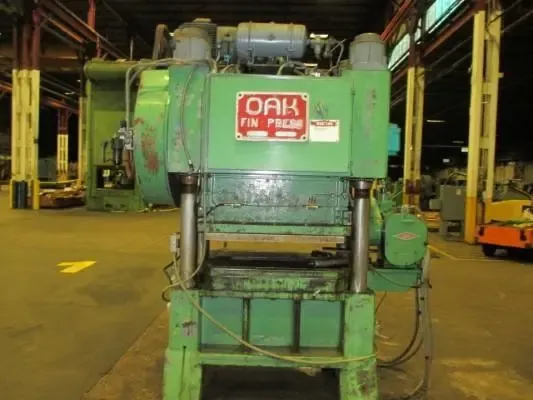

OAK FP2-42 60 t

Press capacity: 60 t
Stroke: 1.5 in
Shut height: 16 in
Shut height adjustment: 9.4 in
Withdrawal travel: 4 in
Speed: 150–400 spm
Bed size: 42 × 34 in
Ram size: 41-3/4 × 30 in
Bolster size: 42 × 34 × 4 in
Bed opening: 36 × 10 in
Distance between posts: 42-1/2 × 20-1/2 in
Main motor power: 7.5 hp
Hydraulic pump motor: 2 hp
Power supply: 230 V, 3-phase, 60 Hz
Power supply (hydraulic pump): 230/460 V, 3-phase, 60 Hz
Machine dimensions: 8 × 4 ft 6 in × 8 ft 8 in
Air clutch
Tie-rod frame construction
Flywheel type
Direct V-belt motor drive
Variable frequency controller
Control console
Wintriss Autoset 1500 Plus load monitor
Dipro 1500 die protection unit
Shadow V light curtain
Link Logic brake monitor
Vamco TS6 roll feed
Roll feed capacity: 6 in
Steel belt conveyor
Portable conveyor on wheels
Conveyor motor: 0.5 hp
