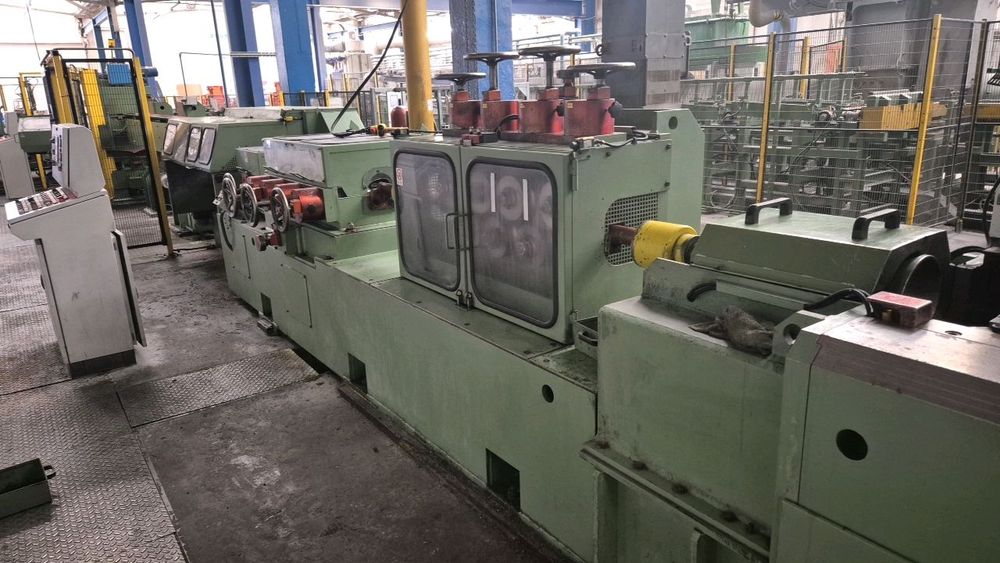

OCN 3/15.80 SX

OCN 3/15.80 SX
2009

Maximum speed 80 m/min
Minimum output length 3 m
Maximum output length 4 m
Maximum pull force 15 ton
Minimum diameter round bar 11 mm
Maximum diameter round bar 42 mm
Minimum diameter hexagon bar 11.1 mm
Maximum diameter hexagon bar 38.9 mm
Run-out pulling capacity 500 kg
Minimum input/output length 2 m
Maximum input/output length 21 m
Minimum diameter at 9 m length 11 mm
Maximum diameter hex bar 65 mm
Minimum diameter hex bar 9.5 mm
Maximum diameter for multi-bar 56.3 mm
Multi-bar range 11–19 mm Ø

OCN Storage Bench
OCN Feeding Bench
OCN Roller Table
OCN Pinch Roller
OCN Pointing Unit
OCN Entry Pinch Roller
OCN Channel Transfer
OCN Push Pointer
OCN Die Stand Head
OCN Drawbench
OCN Straightening Heads
OCN Pinch Roller at Shear Entry
OCN Flying Shear
OCN Pinch Roller at Shear Exit
OCN Channel at Reeling Entry
OCN Reeling Machine
OCN Pinch Roller at Reeling Exit
OCN Bar Saws & Transfer
OCN Chamfering Machine
OCN Bar Pocket
LNS Turbo Bar End Conveyor
STREET Crane run-out collecting pocket
