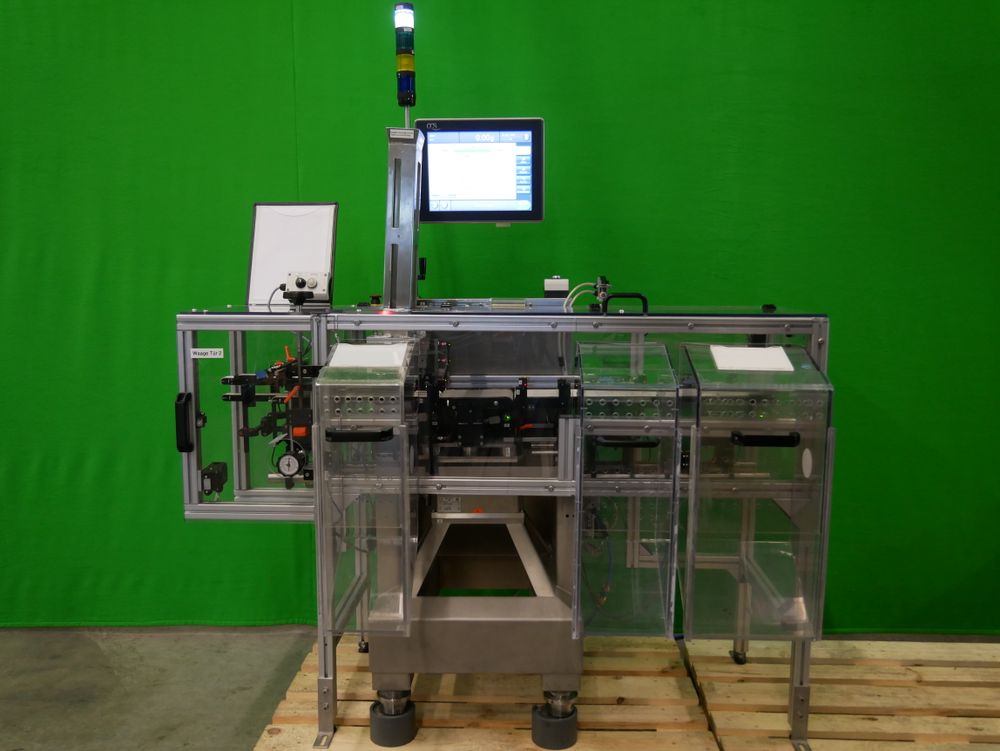

OCS HC Inline Checkweigher

OCS type HC inline checkweigher with weighing cell Wipotec EC 2000,
weighing range up to 750 g, d=-0.01 g, belt width approx. 145 mm
(3 individual belts with a width of 30 mm each),
centre distance infeed approx. 450 mm
with pre-cut head stabelizing belt with a length of approx. 350 mm
and a width of approx. 30 mm, centre distance weighing cell approx. 200 mm,
centre distance outfeed approx. 680 mm,
working height 800-950 mm,
conveying direction from left to right,
carton flap control with bad ejection,
folding carton inclination control with bad ejection
and ejection counter-check,
folding carton weight control with bad ejection and ejection counter-check,
capacity up to 600 weighings per minute,
compressed air 6 bar, electrical connection 230V/50 Hz,
connected load 0.8 KVA, machine footprint approx. 1600 x 800 mm (WxD),
machine height approx. 2050 mm, net machine weight approx. 290 kg.
