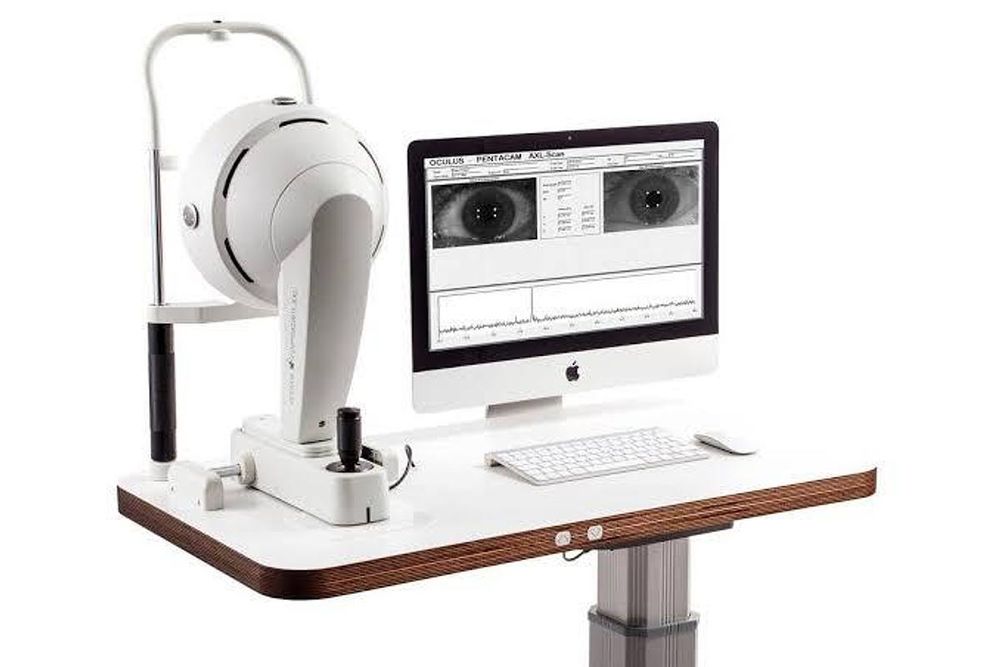

Oculas Pentacam AXL Corneal Topographer

The Oculus Pentacam is a highly advanced,
non-contact diagnostic device used by ophthalmologists
and optometrists to map and measure the anterior (front)
segment of the eye. It uses a rotating Scheimpflug camera
to capture up to 25,000 elevation points in less than two seconds,
providing incredibly precise 3D imaging of the cornea and crystalline lens.

Key Applications:
Refractive Surgery (LASIK/PRK): It is the gold standard
for evaluating if a patient is a safe candidate for laser vision correction.
Keratoconus Detection: The Pentacam is widely used to screen
for and monitor progressive corneal diseases (like keratoconus)
by mapping both the anterior and posterior surfaces of the cornea
with high sensitivity.
Cataract Surgery: It precisely maps the cornea and measures
the anterior chamber, which is crucial for calculating
the exact power of the intraocular lens (IOL) needed during cataract procedures.
Glaucoma Screening: It evaluates the anterior chamber angle
and cornea thickness, both of which are vital for assessing glaucoma risk.

Why It's Unique:
Unlike traditional topography maps that only evaluate the
front curve of the cornea, the Pentacam provides a full 3D model
of the anterior eye segment. It automatically corrects
for minute eye movements during the scan and generates
a topographical map that highlights elevations, depressions,
and tissue thickness. [1, 2, 3]The OCULUS Pentacam AXL is a premium,
non-contact ophthalmic tomographer that combines high-resolution
rotating Scheimpflug imaging with optical biometry.
Unlike traditional topographers that only map the front surface
of the cornea, it captures detailed cross-sectional data
of the entire anterior segment—including the posterior corneal surface
and axial length—in under two seconds.

The primary clinical features and integrated technologies
of the ⁠OCULUS Pentacam AXL span several specialized functions:
Core Imaging & Biometry Technologies:
Rotating Scheimpflug Tomography: Captures up
to 138,000 distinct elevation points to construct a true 3D model
of the anterior eye segment. Measurements are highly reproducible
and entirely independent of the tear film.
Integrated Optical Biometry: Employs contact-free coherence interferometry
to precisely measure the eye's axial length. This measurement occurs
sequentially on the exact same alignment axis as the tomographic scan.

Corneal Topography & Pachymetry:
Dual-Surface Elevation Mapping: Simultaneously tracks the curvature,
elevation, and shape of both the front (anterior) and back (posterior)
surfaces of the cornea from limbus to limbus.
Full-Surface Pachymetry: Generates a continuous thickness map across
the entire corneal surface, identifying the exact thinnest point.
Total Corneal Refractive Power (TCRP): Calculates the actual refractive
power of the cornea by combining data from both surfaces,
eliminating the need to guess the posterior relationship.

Anterior Chamber & Lens Diagnostics:
3D Anterior Chamber Analysis: Quantifies crucial structural variables
including anterior chamber depth, chamber volume,
and exact chamber angle calculations.
3D Lens Densitometry: Evaluates the clarity and light-scattering properties
of the cornea and crystalline lens to map out cataract progression.

Software Packets & Specialized Modules:
IOL Calculation & Database: Features an integrated IOL calculator backed
by a continuously updated database of up to 500 different intraocular lenses.
It accommodates complex standard formulas as well
as specialized ray-tracing formulas for post-refractive surgery eyes.
Belin/Ambrósio Enhanced Ectasia Display: Offers a highly sensitive
screening module to pinpoint early-stage ectasia
and track structural keratoconus staging or progression.
Fast Screening Reports: Provides automated, delegable summaries
of crucial ocular parameters to accelerate patient workflows.
Zernike Corneal Wavefront Analysis: Assesses higher-
and lower-order corneal aberrations to measure overall optical quality.
