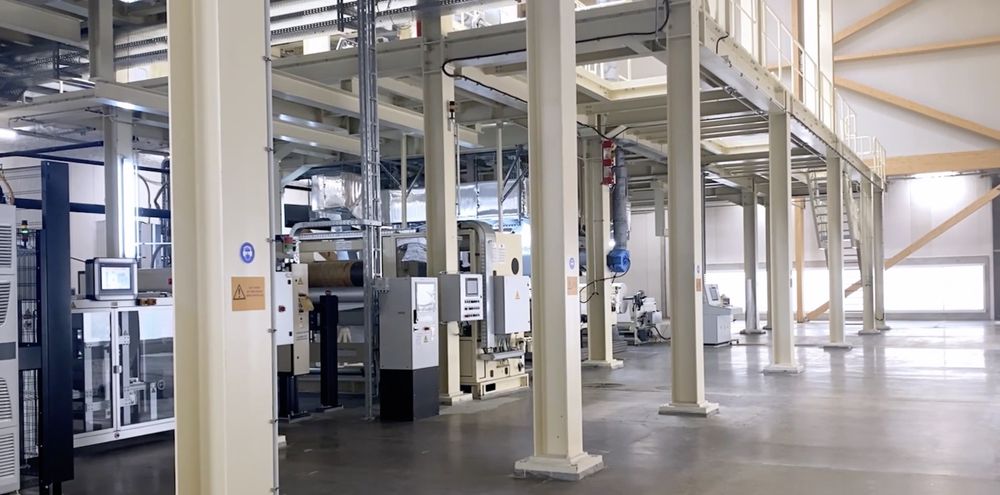

Oerlikon Meltblown polypropylene with Barmag extruder, COMERIO laminating calander, ACELLI Stream and many more

Meltblown polypropylene OERLIKON Nonwoven ww: 1.6 m,
8-170 gr/m2 380V with digital control, including:
- Loading station - PIOVAN Hopper
- WOLF GEISENFELD pellet drying unit type capacity 17,800 m3/H
- FDM PIOVAN Hopper Loader
- OERLINKON Barmag extruder with filters, NORDSON Meltfilter
- OERLIKON Die Body block
- OERLIKON Nonwoven suction filament material
- COMERIO ERCOLE laminating calender + 2 rollers, Width: Approx. 2 m,
- MAHLO radio-active wave scanner
- OERLIKON RST Ecutec -
- ACELLI Stream In

Line details:

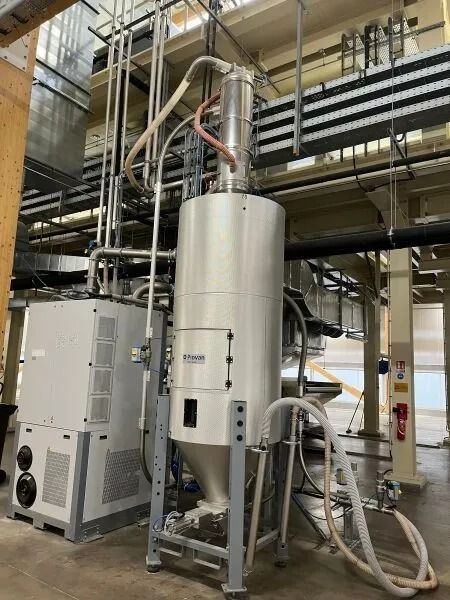

- Loading station - PIOVAN Hopper pellet conveyor Mod. TN1000 with 400 l capacity tank. Power 18kW ( 2021), equipped with PIOVAN GMP40 dryer Power 30kW ( 2021), with electrical cabinets, pipes, filters, ducts, pressure gauges and accessories

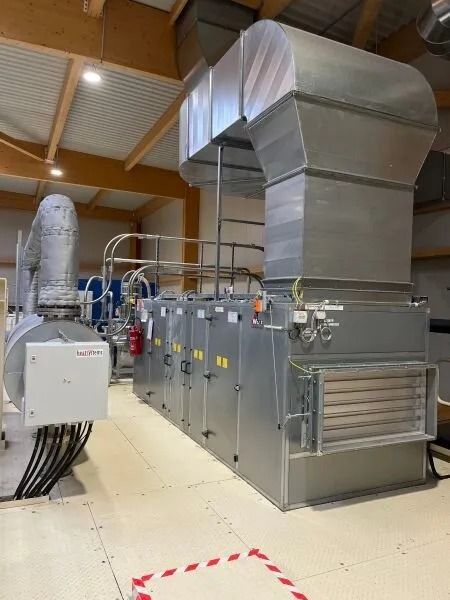

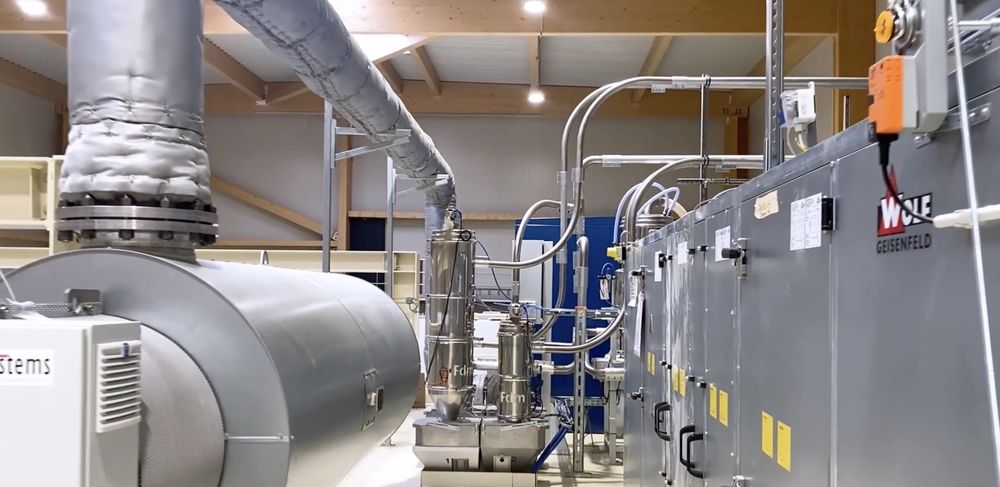

- WOLF GEISENFELD pellet drying unit type WK-COM N/B255 ( 2021), with heating system, radiator, fans and filters, capacity 17,800 m3/H (4.94 m3/s), equipped with a Heatsystems electric boiler, capacity 400°C. 380kW from 12/2020), with pipes and insulated ductwork

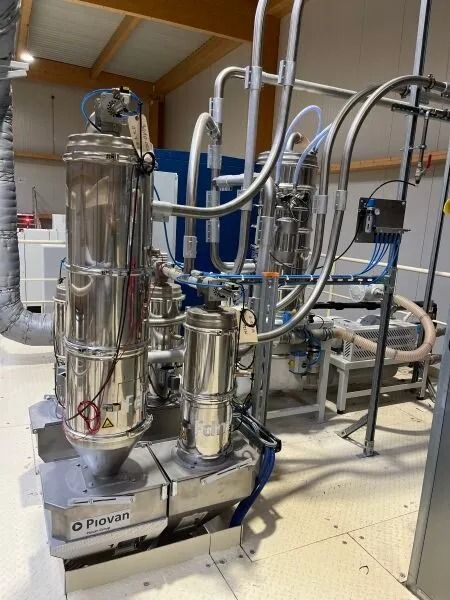

- FDM PIOVAN Hopper Loader FSG 440/104 80L/91L pellet dosing and transport station ( 03/2021), with cylindrical stainless steel tank, pump, hopper, and filters
Equipped with AERZEN D62H screw air compressor. Power: 160kW - Pressure 1,013 - 2,513 bar ( from 2021)
7,737 hours on the clock
With hoses and accessories

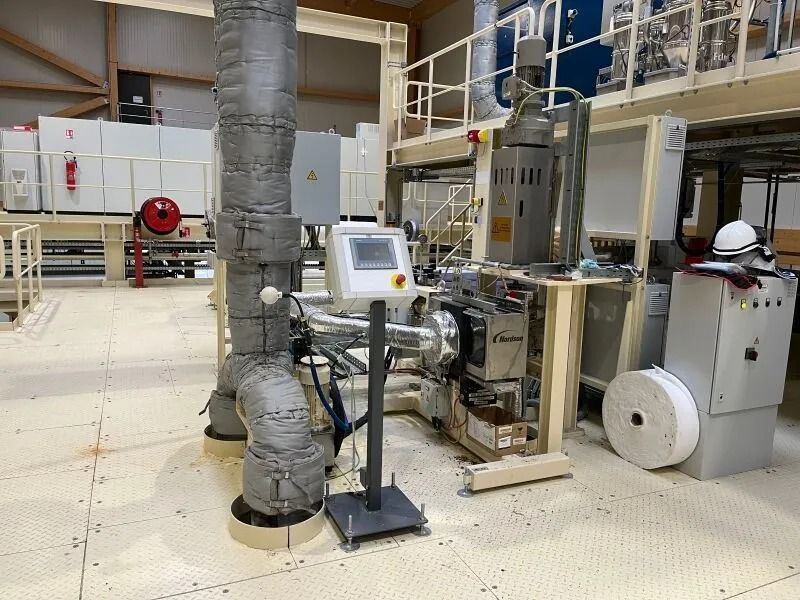

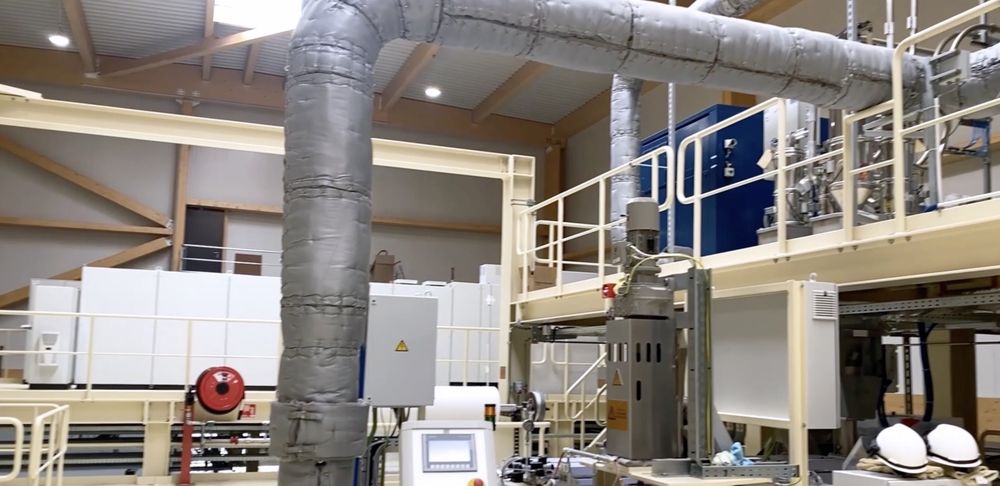

- OERLINKON Barmag extruder type 9E10/30D-HT (No. NMG/45.3453 from 2021), with filters, NORDSON Meltfilter liquid material type BKG Norkon K-SWE-101/HT2 PO5.2 ( from 2021) and stainless steel spinning pump with SIEMENS motor, with SIEMENS Simatic HMI digital touchscreen control panel, with hoses and accessories

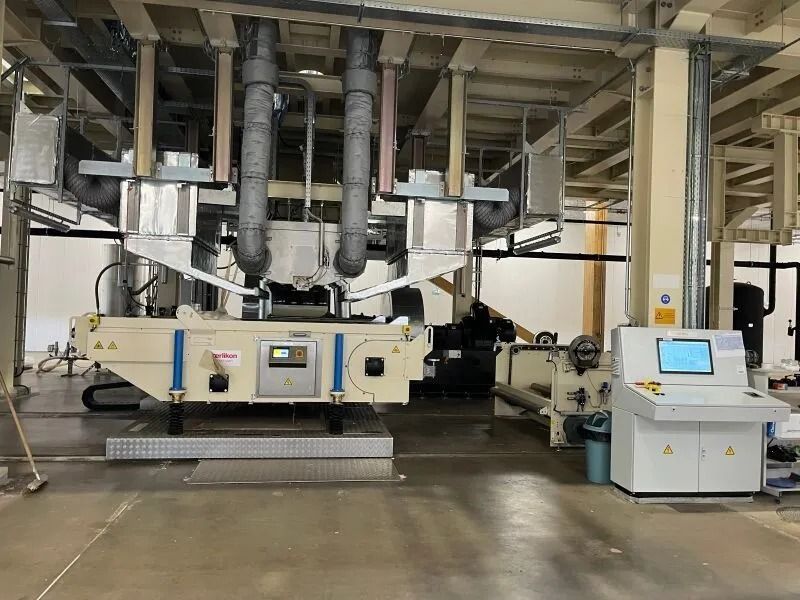

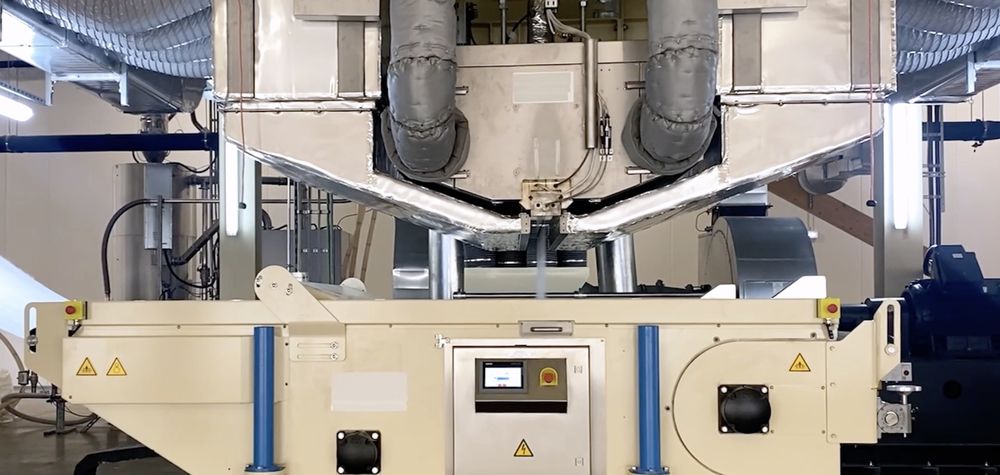

OERLIKON Die Body block type 70132985 (from 2021), with double Quench air cooler Air, with ducts, hoses, and accessories

- OERLIKON Nonwoven suction filament material depositing table type 70132994 ( 2021), with SIEMENS Simatic HMI digital touch control panel, suction turbine, ducts, pressure gauges, and accessories on a ribbed aluminum platform frame on rails. Length: Approx. 12.50 m, equipped with 2 material reels, inner and outer layer unwinders, including AZ (AUTOMATION MASCHINEBEAU ZERSPNUNG) type Horizontalabroller (01/2021), with accessories

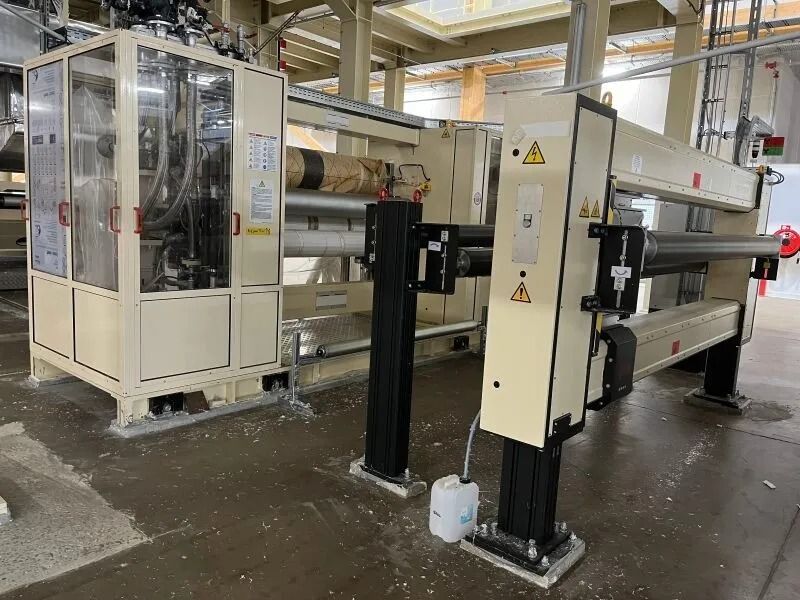

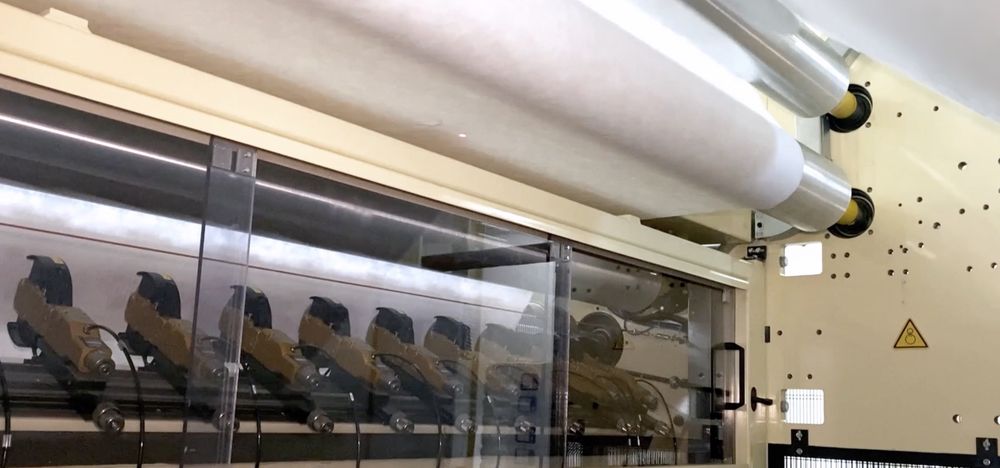

- COMERIO ERCOLE CNT/2 2.410X2000 Y laminating calender + 2 rollers, including textured, capacity: Width: Approx. 2 m, with SIEMENS Simatic HMI touchscreen control panel, rolling infeed wire feeder support, filters, and accessories

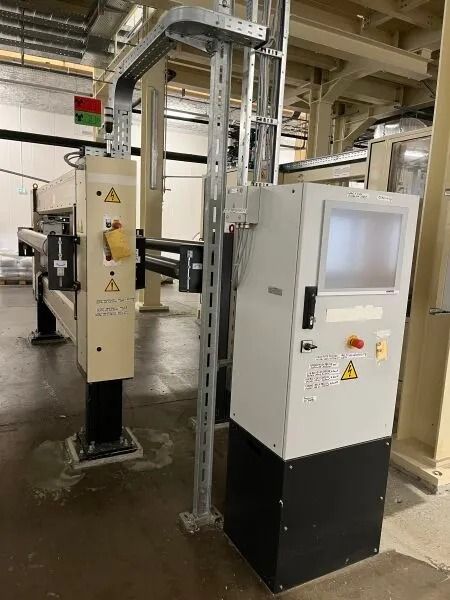

- MAHLO QMS-12 380V 10A radio-active wave scanner ( 01/2021), with touchscreen control panel, 2-roll infeed wire feeder support on metal support terminal, and accessories

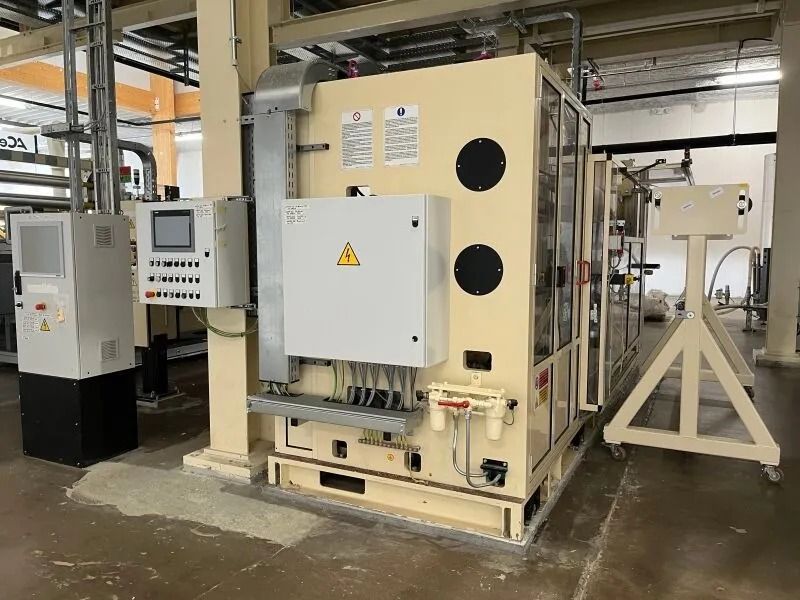

- OERLIKON RST Ecutec - 1600 Grundgestell E-Charger electrical charging module (11/2020), with SIEMENS Simatic HMI touchscreen control panel and accessories in a 3-door ITEM aluminum-framed Plexiglas cage

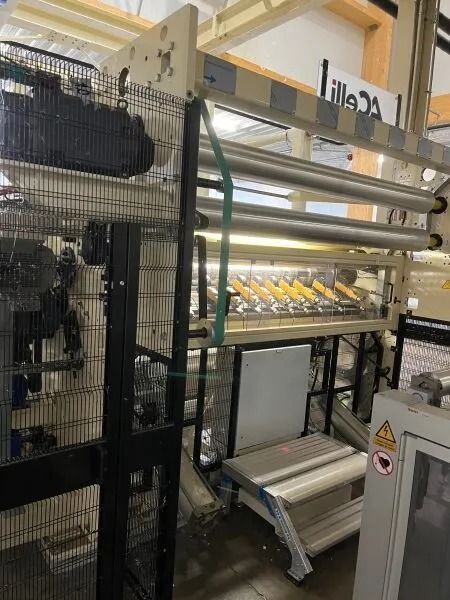

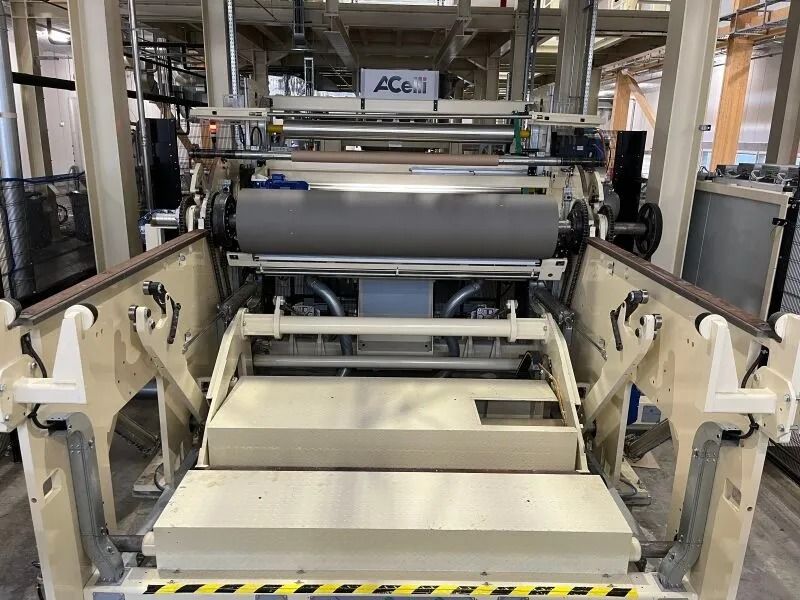

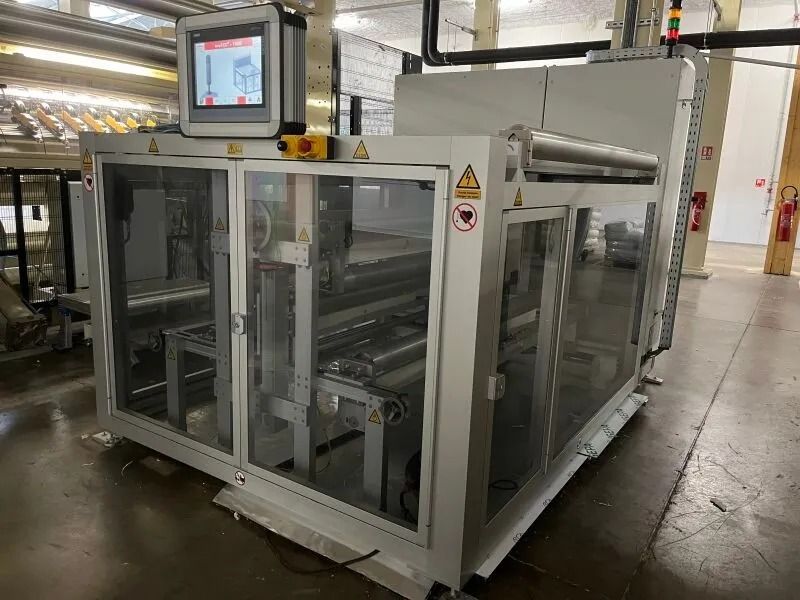

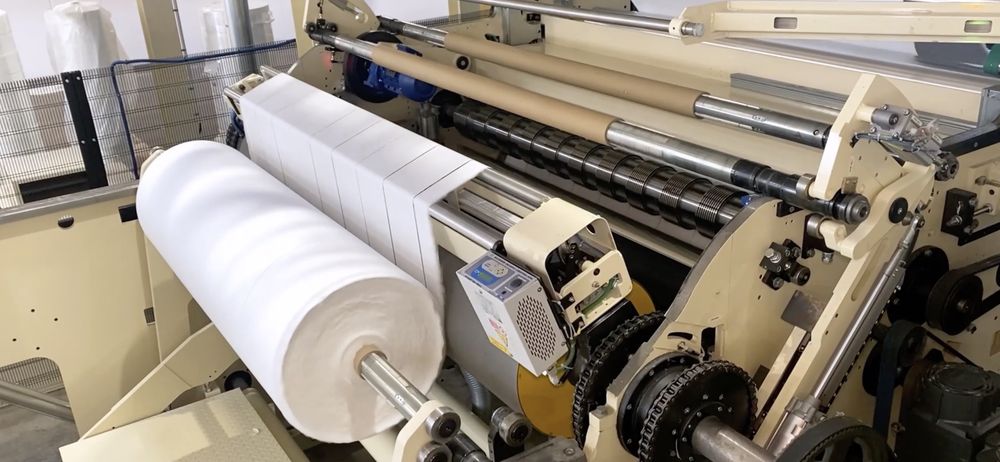

- ACELLI Stream In Line Version 668 12-knife final cutting station (No. 2020084 of 2021), with SIEMENS Simatic HMI digital touchscreen control panel, control terminal, motor, cylinders, and accessories in a black metal protective cage with laser stops, one door (Length 6 m x Width 5 m approx.)

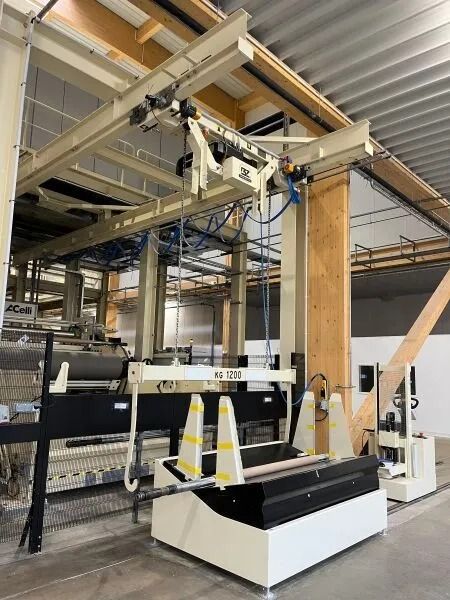

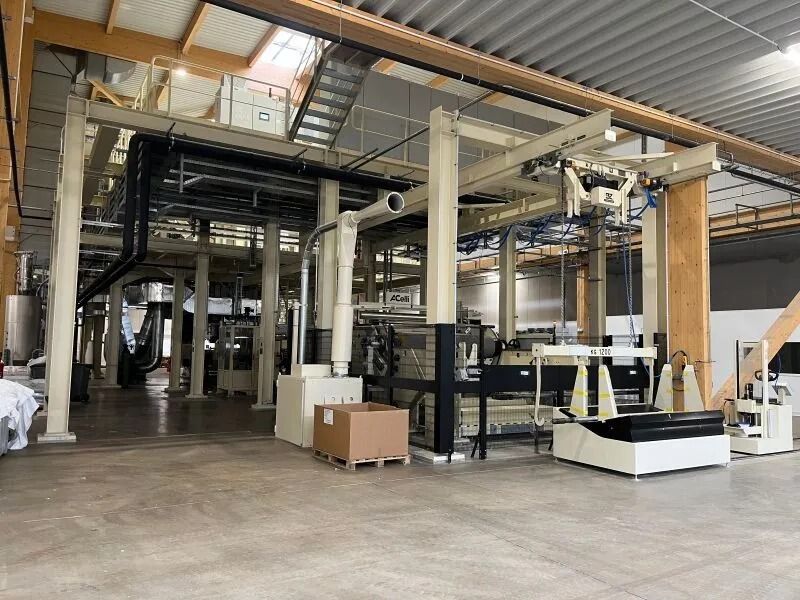

Equipped with BZ CRANE SERVICES electric chain spreader, capacity 1200 kg (Width 2.50 m approx.), with RWM remote-controlled hoist on 8 m long rail support, hydraulic tilting outlet reel support, and B&B ELEVATORS Mod. ES 02/11-SP electric stacker with 2 m mast, capacity 200 kg ( 2021), on rails, length 4.50 m approx.
- 19 hours on the clock - With charger
With gray metal main operator panel with SIEMENS Simatic HMI touchscreen (No. 70133663), with ball mouse

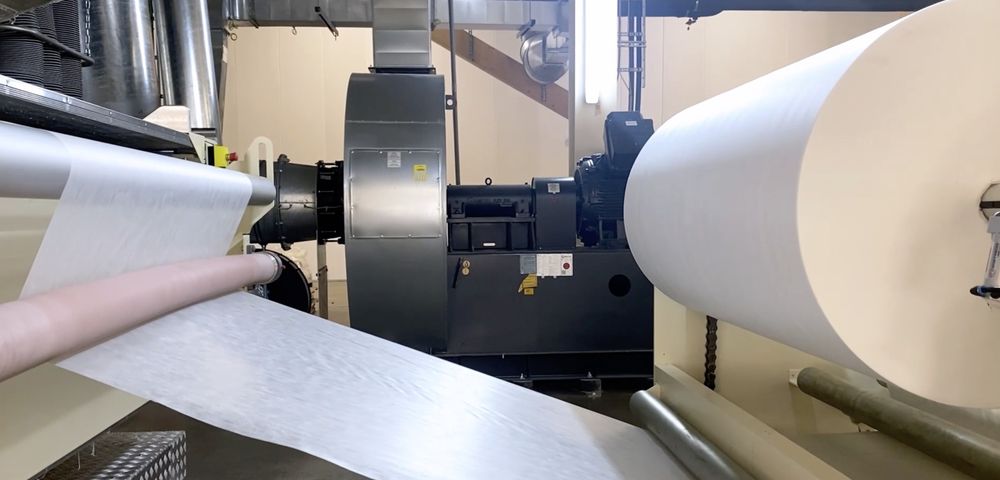

Equipped with TRANE Aquastream 3G main cooling unit Ref. CGAM 060 HE SQ 380V with R410A fluid (2021), REITZ VENTILATOREN blower system type KXE250-0530-00 380V Power 256.57kW (Capacity 500 m3/min) ( 2020), HEIDER buffer tank type DW P capacity 3500 l. ( 2021), with pressure gauges, motors, generators, electrical cabinets, pipes, ducts, and accessories

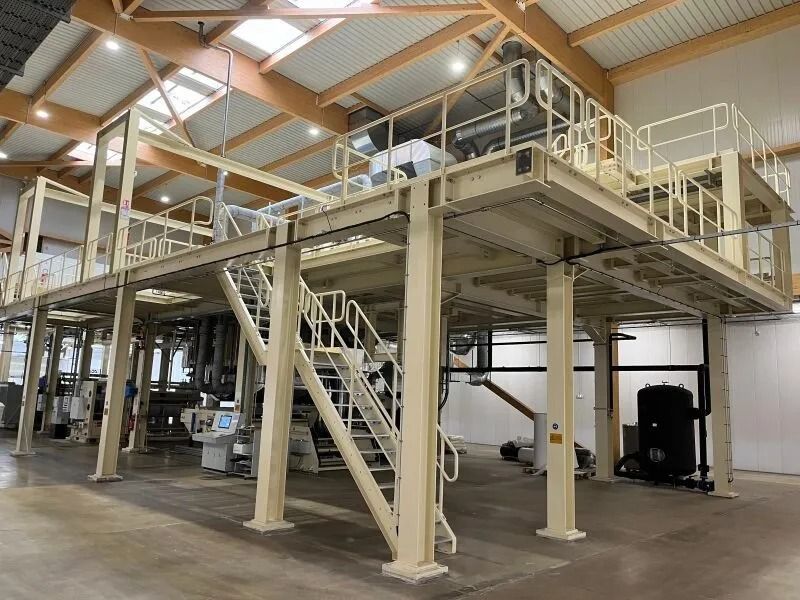

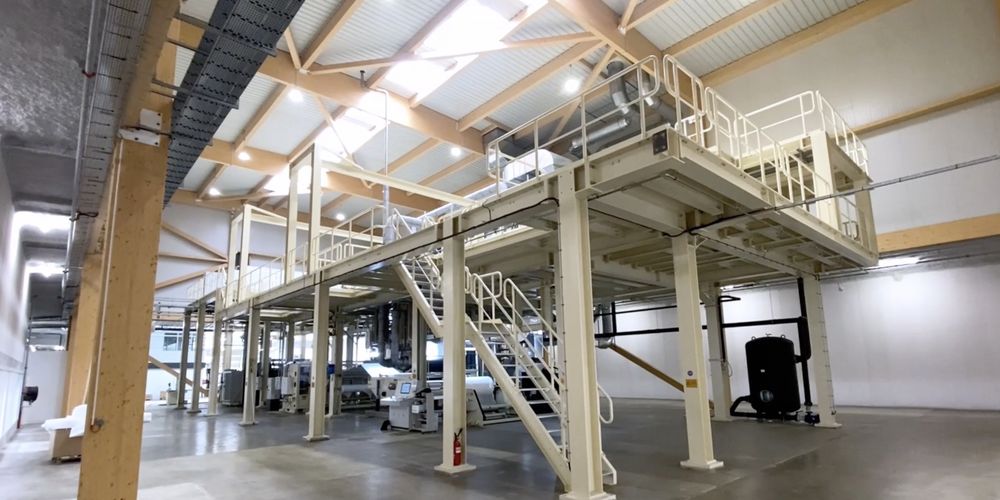

On a 3-level beige metal support platform, length 35 m x width 14 m approx., with stairs, rails
