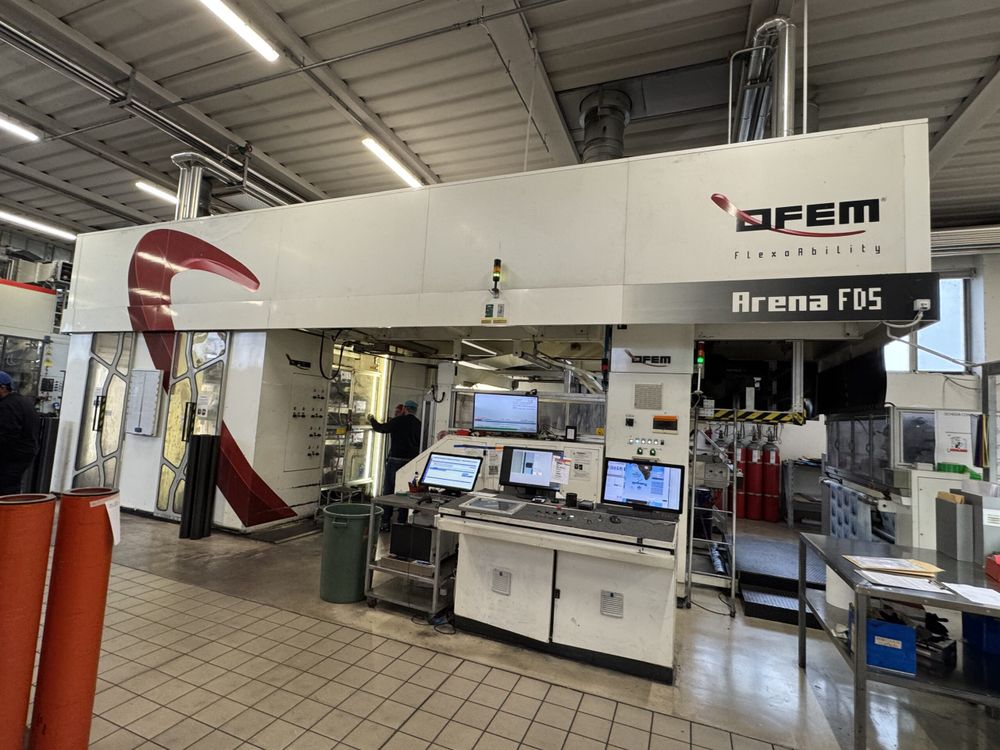

Ofem GL FDS 8 1200 mm

1.03 Year of construction 2004, refurbished in 2022
1.04 Colors (nr) and Type 8 Colors
1.05 Gearless Si
1.06 Print width (mm) 1200 mm
1.07 Material passage (mm) 1250 mm
1.08 Print development min. – max. (mm) 340mm - 800mm
1.09 Mechanical speed (m/min) 350 M/MIN
1.10 Material type (kg) Paper and plastic films
Electrical power: 3 x 400 V, 50 Hz.
Air pressure: 6 bar
1.13 Inks Solvent base
1.14 Doctor blade groups: quantity N° 10
1.15 Washing of printing units Yes
1.16 Type of unwinder Automatic
1.17 Max. diameter on unwinder (mm) 800
1.18 Winder type Automatic
1.19 Max. diameter on winder (mm) 800
1.20 Heating Diathermic oil
1.21 Video camera Yes, Grafikontrol MATRIX 100%
1.22 Availability October 2025
1.23 Further information 25 anilox - 200 printing sleeves - 2 sets of carriers - plate mounter.
