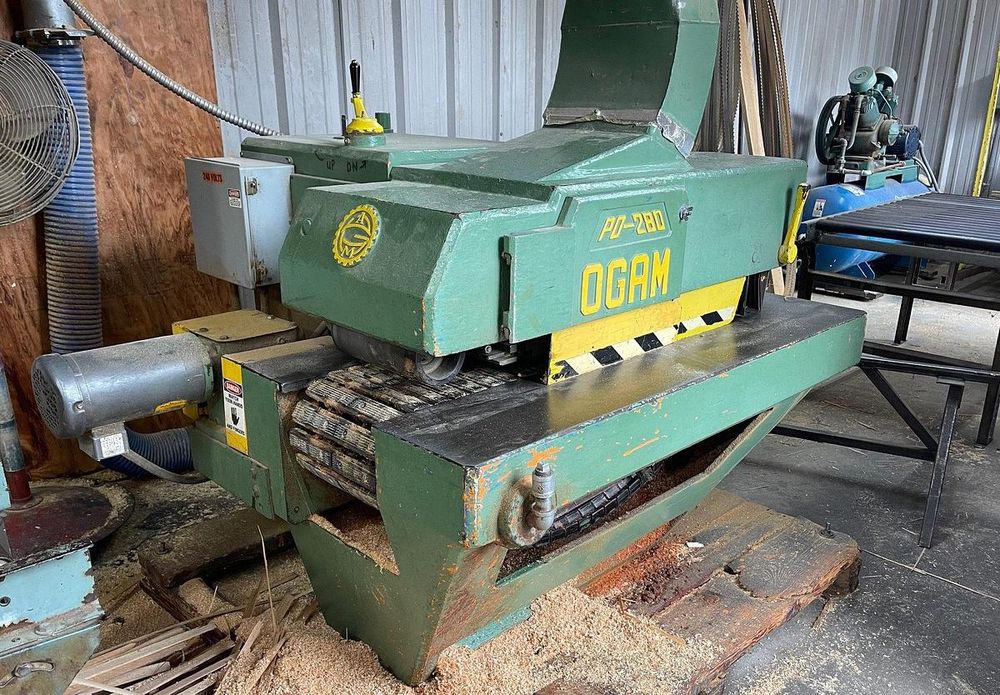

Ogam PO-280 DIP-CHAIN GANG RIPSAW

12" DIP-CHAIN GANG RIPSAW
(240/60/3 electrics)

Standard Specifications: (To be verified)
- 50 HP 220/440/60/3 saw arbor motor, (to be verified)
- (110 mm - 120 mm) max. cutting height
- 280 mm max. distance between outside saw blades
- 300 mm feed chain width
- 530 mm max. work-piece feed width
- 500 mm min. length of work-piece
- (220 mm min. & 350 mm) max. diameter saw blade
- 70 mm diameter saw arbor, (4,200 RPM)
- 1.3 / 1.9 HP, 440/60/3 chain feed motor
- (4 to 36 m/min) feed speed via 2-speed motor, (& variable speed pulley)
- 8-1/2” diameter dust outlet
- 76” x 58” x 56” approx. overall dimensions
- Weighs approx. 4,000 lbs.
