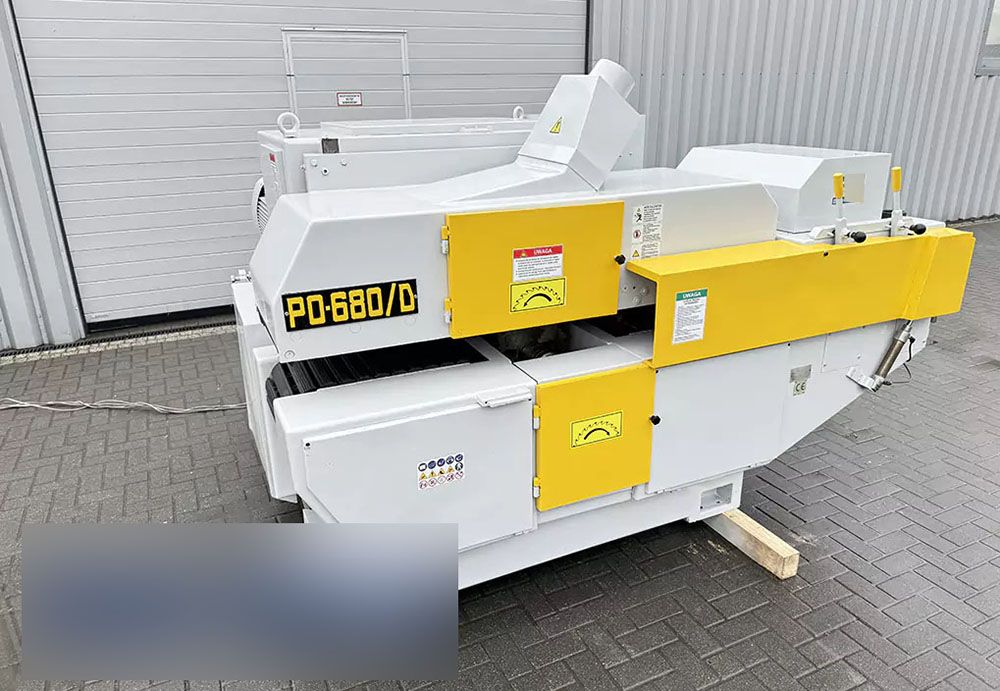

Ogam PO-680 D Double track multi-track saw

Track width 340 mm
shaft width 360 mm
diameter of the disk hole 70 mm
max blade diameter 315 mm
max cutting height 180 mm
* in advance
pneumatically pressed pulling shaft +
2 rows of fleshers +
3 sliding pressure rollers, smooth +
flingers +
shaft with saws +
3 smooth sliding pressure rollers +
flingers +

* from down
input shaft, pulling, toothed +
caterpillar +
shaft with saws +
caterpillar +

smooth regulation of feed speed on the inverter +
main engine 2x55kW
feed motor 4kW
electric lifting of the top / bottom body +
electric adjustment of shafts with saws +
central lubrication +
diameter of the extraction nozzle 2x150mm
dimensions length / width / height 2800x2400x1900mm
weight About 5000kg
