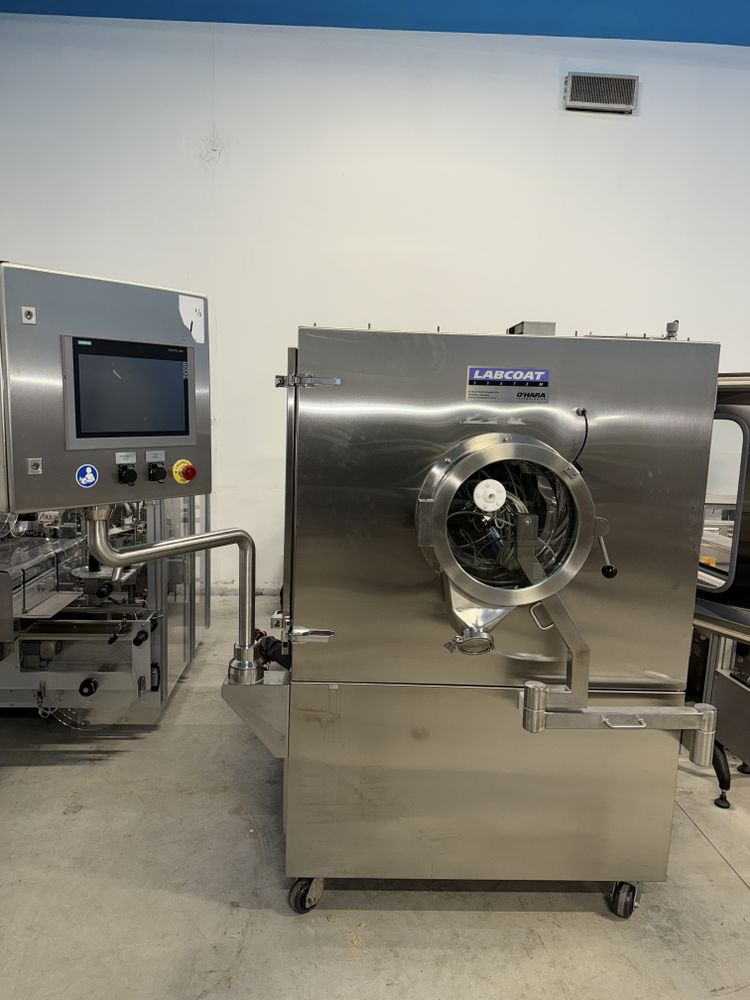

Ohara LCM100 Coating

coating drum, max. 106 kg @ 0.8 kg/l,
best-selling laboratory coating series, the
Labcoat™ M, offers a compact, stand-alone tablet coating system
for medium and small batches.
The Labcoat™ allows for flexibility through a wide range of interchangeable drums
from 14.3 to 157 litres.
Features:
Interchangeable drums.
316L stainless steel with mirror finish (roughness of 0.4) parts in
contact.
Each drum is complete with non-slip ribs and
high-performance mixing deflectors.
Portable system mounted on wheels with brakes.
Schlick ABC spray nozzles.
Watson Marlow peristaltic pumps.
Siemens colour touchscreen HMI and PLC
Air fan and electric heater installed inside the equipment
at the top of the drum.
Integrated roughing and HEPA supply filters.
Benefits
The air handling units on the M100 models are installed above the drum. This
reduces the space required and installation efforts.
Easy-to-use control system
Easy to scale the process
Refined and simple design
General data:
Available drum sizes: 19" - 36XC8
Total volume 14.3 to 157 litres
Working capacity From 6.8 to 106 kg
Air volume From 425 to 2380 m3/h
