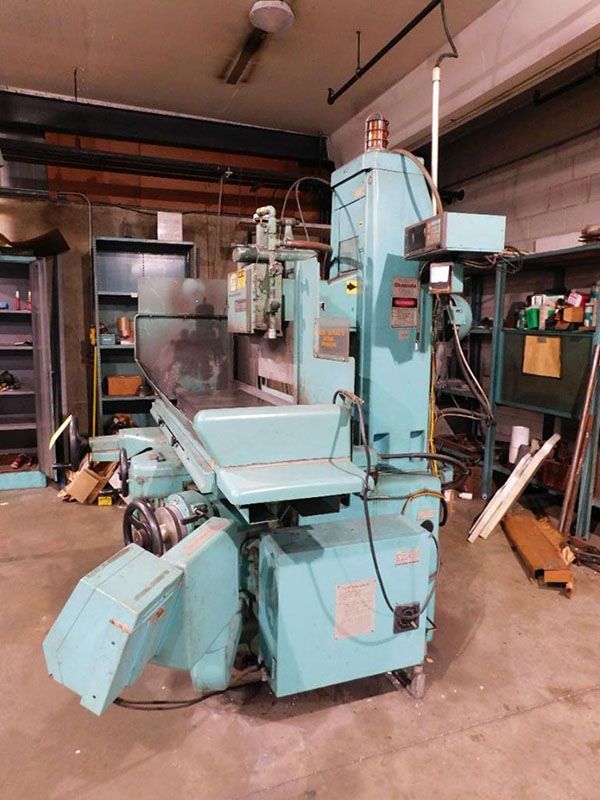

Okamoto ACC-124

Maximum Grinding Length: 24"
Maximum Grinding Width: 12"
Maximum Height Under 14" Wheel: 13.7"
Maximum Longitudinal Movement: 29.5"
Maximum Cross Movement: 13.6"
Longitudinal Hydraulic Feed: 1–100 FPM
Hydraulic Cross Feed (Intermittent): 0.02"–0.8"
Hydraulic Cross Feed (Continuous): 0.4"–40 IPM
Hand Feed per Revolution (Cross): 0.25"
Wheel Graduation: 0.001"
Auto Feed/Table Stroke (Vertical): 0.0001"–0.00015"
Auto Feed/Saddle Reversal: 0.0001"–0.00015"
Hand Feed per Revolution (Vertical): 0.05"
Handwheel Graduation: 0.0001"
Rapid Feed Rate: 19 IPM
Grinding Wheel Size: 12" x 1-1/2" x 5"
Spindle Motor: 5 HP
Hydraulic Pump Motor: 3 HP
Vertical Rapid Feed Motor: 0.5 HP
Hydraulic Table Traverse
Auto Crossfeed
Auto Incremental Downfeed
Automatic Sparkout (up to 5 passes)
Power Elevation
Over-the-Wheel Dresser
12" x 24" Electro-Magnetic Chuck
Coolant System with Magnetic Separator
2-Axis Digital Readout (Sony Magnescale LH10)
Spindle Motor: 5 HP (230–460V, 3-phase)
Machine Weight: 5000 lbs
Dimensions: 74" x 103" x 74"
