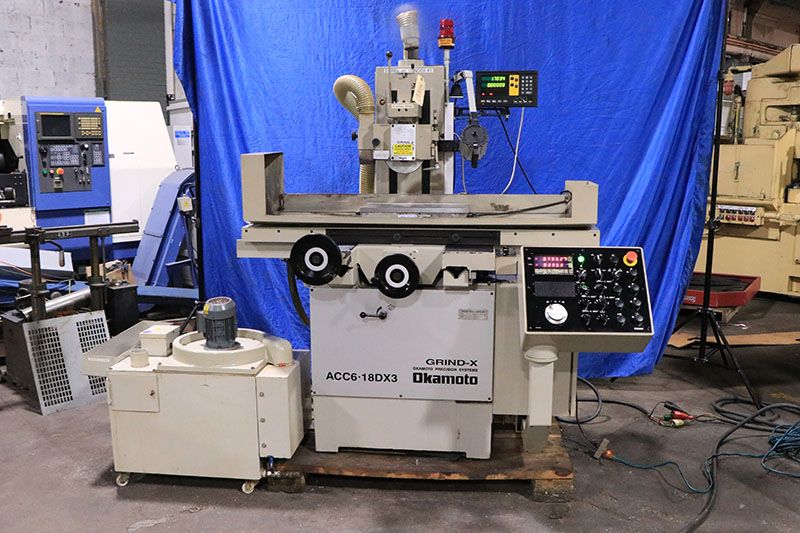

Okamoto ACC-618DX3

Nominal grinding capacity – 6" x 18"
Maximum height under 8" wheel – 11.7"
Table speed, infinitely variable – up to 82' FPM
Max. longitudinal table movement, manual – 24"
Auto cross feed increment – 0.002" to 0.40"
Auto continuous crossfeed – 4' to 40' FPM
Crossfeed, manual, hand feed per revolution – 0.25"
Graduation of handwheel – 0.0004"
Fine feed knob for crossfeed, graduation – 0.00002"
Max. crossfeed, manual – 7"
Auto incremental downfeed increments – 0.00005" to 0.0015"
Power rapid wheel positioning rate – 16" IPM
Spindle motor – 2 HP
Wheel size – 8" dia. x 1"W x 1.25"B
Approx. dimensions for operation – 85" x 63"D x 70"H
Approx. machine weight – 2500 lbs

DX series programmable electronic auto incremental downfeed
AC servo driven downfeed
Auto incremental downfeed for surface and plunge operations
Digital display for vertical axis
Dual rate auto downfeed with coarse and fine selections
Sparkout passes (0 to 5) with auto table park at cycle completion
Electronic handwheel for manual vertical movement
Power rapid wheel positioning
Hydraulic table traverse
Electronic automatic crossfeed

Equipped with:
6" x 18" Kanetsu model KESL-1545 LBP fine-division electromagnetic chuck
Variable hold neutrofier control on machine console
Combination coolant system and dust collector
Over-the-wheel dresser with micrometer adjustment
DRO Pros model EL402-G two-axis digital display with one axis scale for vertical axis
2 HP spindle motor wired for 220 volts
