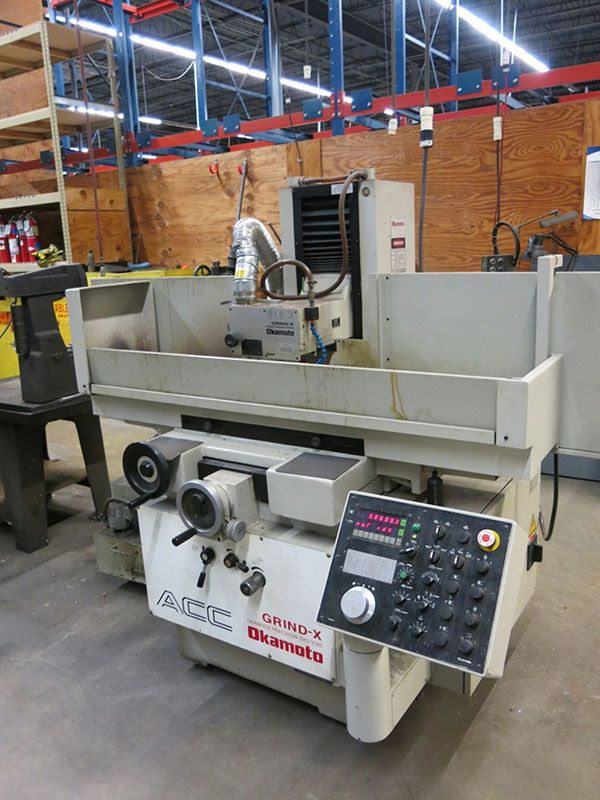

Okamoto ACC-8-20DX

Feedrate, Rapid and/or Axis travel
Table Longitudinal Travel (Manual): 24 in
Crossfeed Manual Max: 9 in
Auto Crossfeed Increment: 0.002" to 0.40"
Auto Continuous Crossfeed: 4' to 40' FPM
Auto Incremental Downfeed: 0.00005" to 0.0015"
Power Rapid Wheel Positioning Rate: 16 in/min
Rotary/C axis
Control and features
Programmable Electronic Auto Incremental Downfeed
Servo Driven Downfeed
Auto Incremental Downfeed for Surface & Plunge Operations
Dual Rate Auto Downfeed with Coarse & Fine Selections
Digital Display for Cross & Vertical Axes
Sparkout Passes 0 to 5 with Auto Table Park at Completion
Electronic Handwheel for Manual Vertical Movement
Hydraulic Table Traverse & Automatic Crossfeed
Bar capacity and swing
Spindle specs
Spindle Motor: 2 HP
Spindle Speed Range: Not specified
Milling specs
Feedrates
Quill Feeds/Hand Feed Per Rev: 0.25"
Grad. of Handwheel: 0.0004"
Optional Fine Feed: 0.0001"
Chuck and tooling
8" x 20" Fine-Division "LBP" Electro-Magnetic Chuck Installed 2022
Variable Hold Neutrofier on Console Control
Machine size, weight, and any additional equipment
Nominal Grinding Capacity: 8" x 20"
Maximum Height Under 8" Wheel: 15.6"
Table Speed, Infinitely Variable: Up to 82 FPM
Wheel Size: 8"D x 1"W x 1.25"B
Approx. Machine Weight: 3,810 lb
Combo Coolant System & Dust Collector
Motors: 3/60/230-460 Volts, Wired for 3/60/480 Volts
