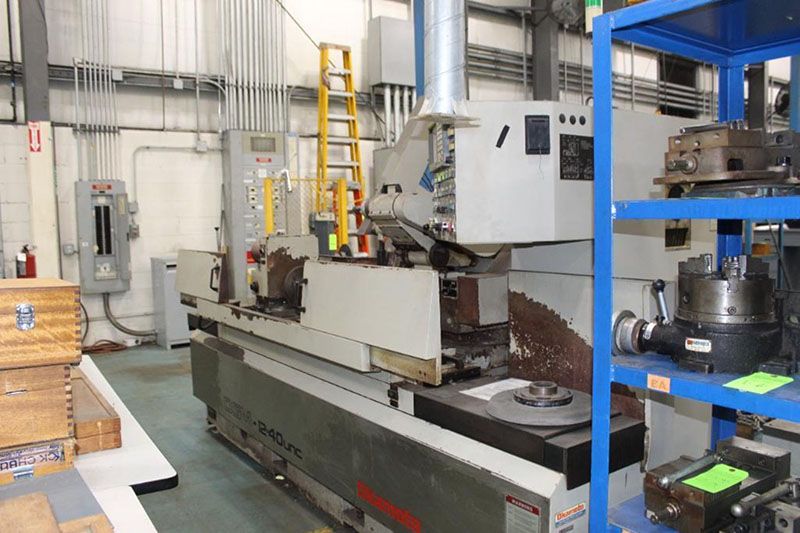

Okamoto OGM 1240UNC

Swing Over Table: 12.6″
Distance Between Centers: 40″
Max. Table Travel: 50″
Table Swivel Angle: 0 to 8.5°
Wheelhead Total Stroke (X-axis): 11.8″
Wheelhead Swivels: ±30°
Wheelhead Power Rapid Stroke: 1.5″
Wheelhead Automatic Infeed: 0.00001″ to 0.004″
Rapid Feedrate: 400″ IPM
Table Feed Motor: 1.2 HP AC Servo
Wheelhead Feed Motor: 1.2 HP AC Servo

Grinding Wheel Size: 14 x 1.5 x 5
Grinding Wheel Speed: 1770 / 2,000 RPM
Grinding Wheel Spindle Motor: 7.5 HP

Work Head Center Taper: MT #4
Work Head Spindle Bore: 0.7″
Work Head Spindle Motor: 1 HP AC Servo
Work Head Spindle Speed: 10 – 500 RPM
Work Head Swivel Angle: +30° / -90°

Tailstock Taper: MT #4

Control: FANUC 18-GC CNC Control
Two Axis Simultaneous CNC Control
CNC Programming for Contouring, Multiple Diameters & Dressing
Minimum Programmable Increment: 0.00001″
Conversational or G and M Code Programming Standard
RS232C Port
Fanuc Red Cap Servo Motors for Axis Movements
Low Friction Material Applied to Sliding Surfaces of Slide Table & Wheelhead

Coolant System
Machine Wired for 3/60/220 Volts
Separate Transformer Included
Swing Down I.D. Attachment & I.D. Spindle
Lateral Locator Device
Workhead Has a Center
Extra Wheel Hub & Wheel
Magnetic Chuck with Draw Bar & Adaptor

Machine Weight: 9,250 lbs
